1. Introduction

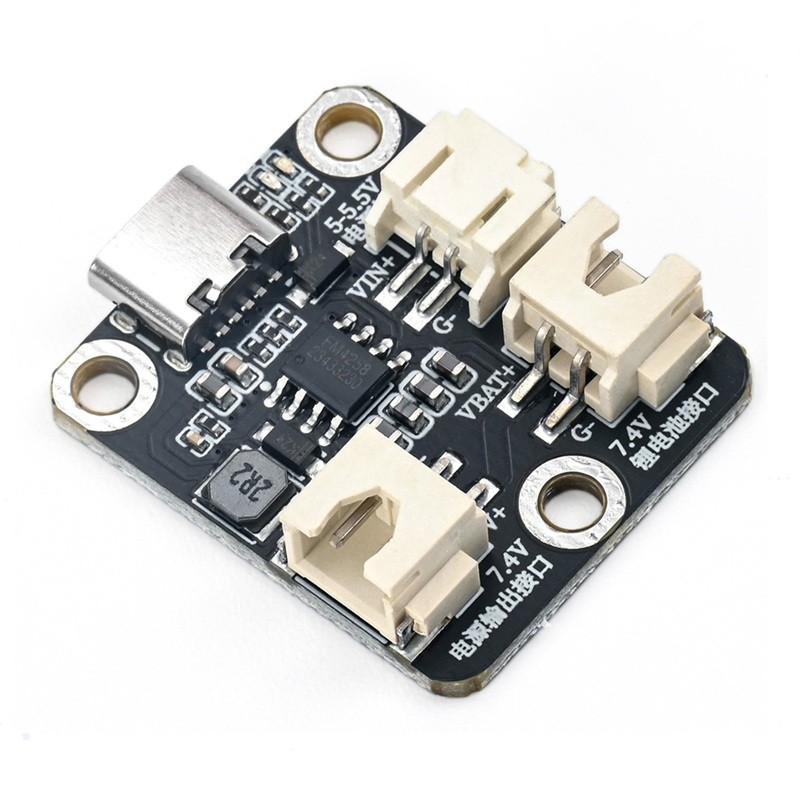

The HS-P08 is a dual-series 7.4V lithium battery charging module designed based on the FM4258 boost charging management chip, using a Type-C interface 5V input, specifically used for charging a 2-series 18650 lithium battery pack.This module can be used to charge the lithium battery with a solar panel or data cable. When charging, the green charging indicator light will turn on to directly display the charging status. When the battery is fully charged, the green full charge indicator light will turn off, indicating that charging is complete.Supports multiple charging input methods, can accept DC input of 5-5.5V. Equipped with Type-C 5V charging port and has a USB charging 5V interface.It can provide various voltage outputs, including a 7.4V output interface, which can meet the needs of different electrical equipment.
2. Schematic

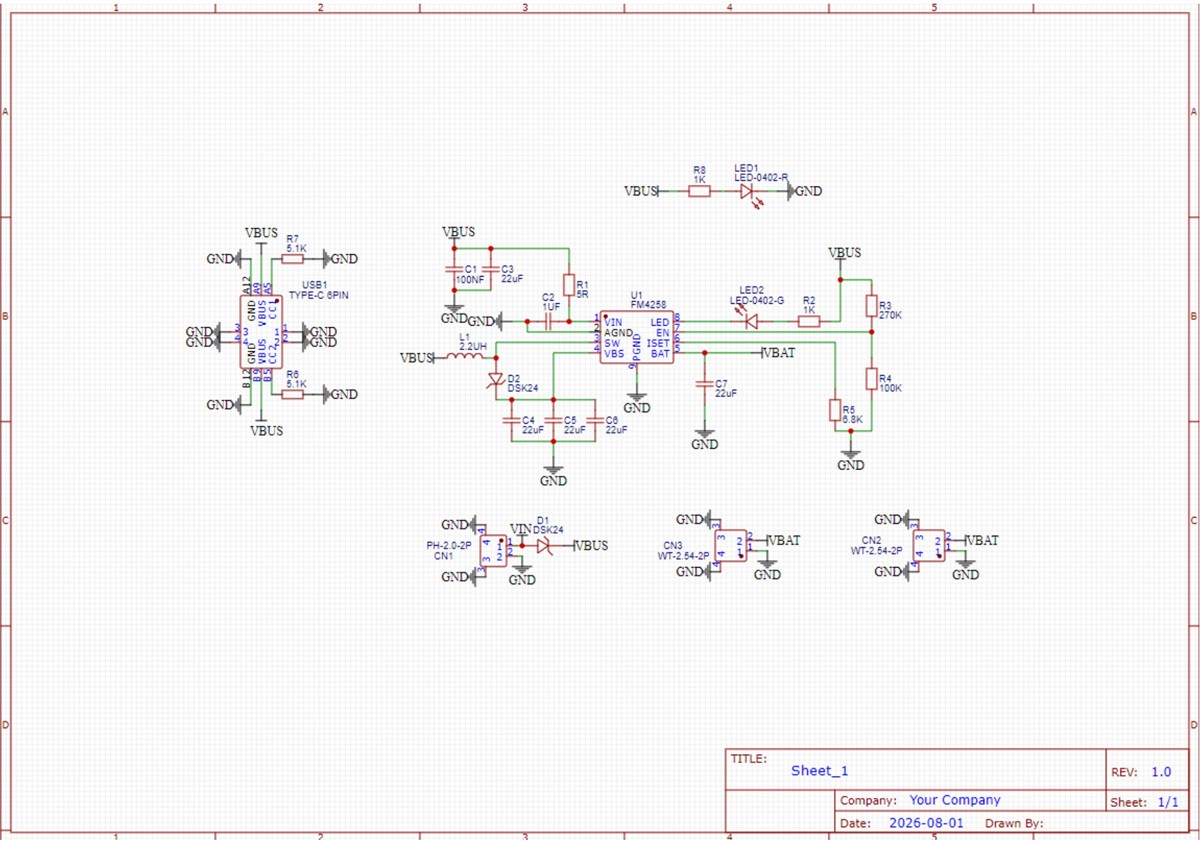

HS-P08 7.4V Lithium Battery Charging ModuleSchematicClick to view

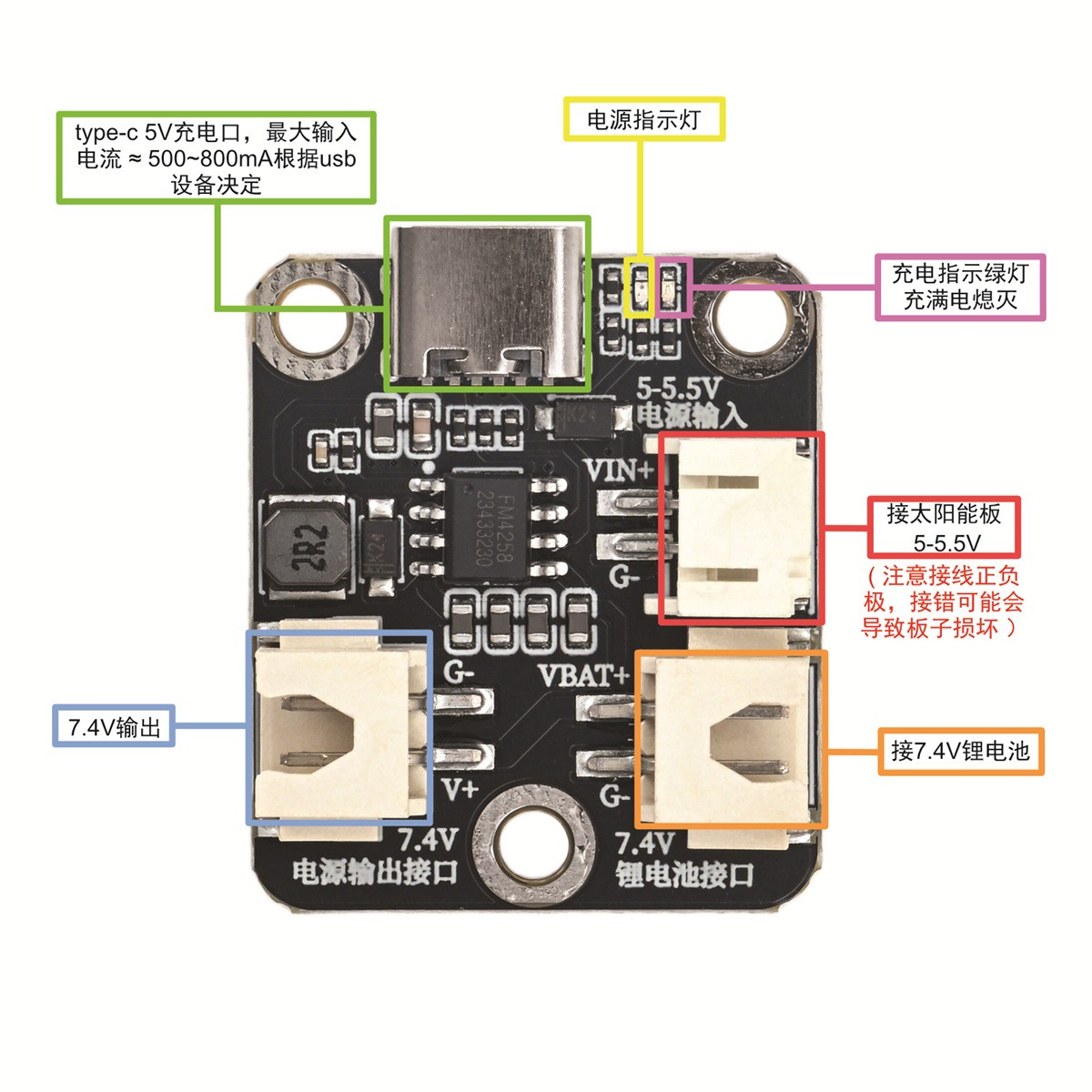

Module Parameters
Pin Name | description |
|---|---|
[Type-C Interface] | Onboard USB-C Female Connector, 5V Main Power Input |
G | GND (Common Ground, Negative Power Pole) |
VBUS | VBUS (5V Input Positive Pole, Type-C Power Input) |
[VIN Input Terminal] | Upper right corner PH2.0, silk screen on board: VIN+, G- (backup 5V input, in parallel with Type-C VBUS) |
G | G- (Common Ground, Negative Power Pole) |
VBUS | VIN+ (5V Input Positive Pole) |
Battery Terminal | Lower right corner PH2.0, silk screen on board: VBAT+, G- (connected to lithium battery pack) |
G | G- (Common Ground, Negative Power Pole) |
VBAT | VBAT+ (battery positive terminal, 7.4V lithium battery pack) |
Power Output Terminal | Lower left corner PH2.0, silk screen on board: V+, G- (power supply to external) |
G | G- (Common Ground, Negative Power Pole) |
VBAT | V+ (battery voltage output positive terminal, 7.4V external power supply output) |

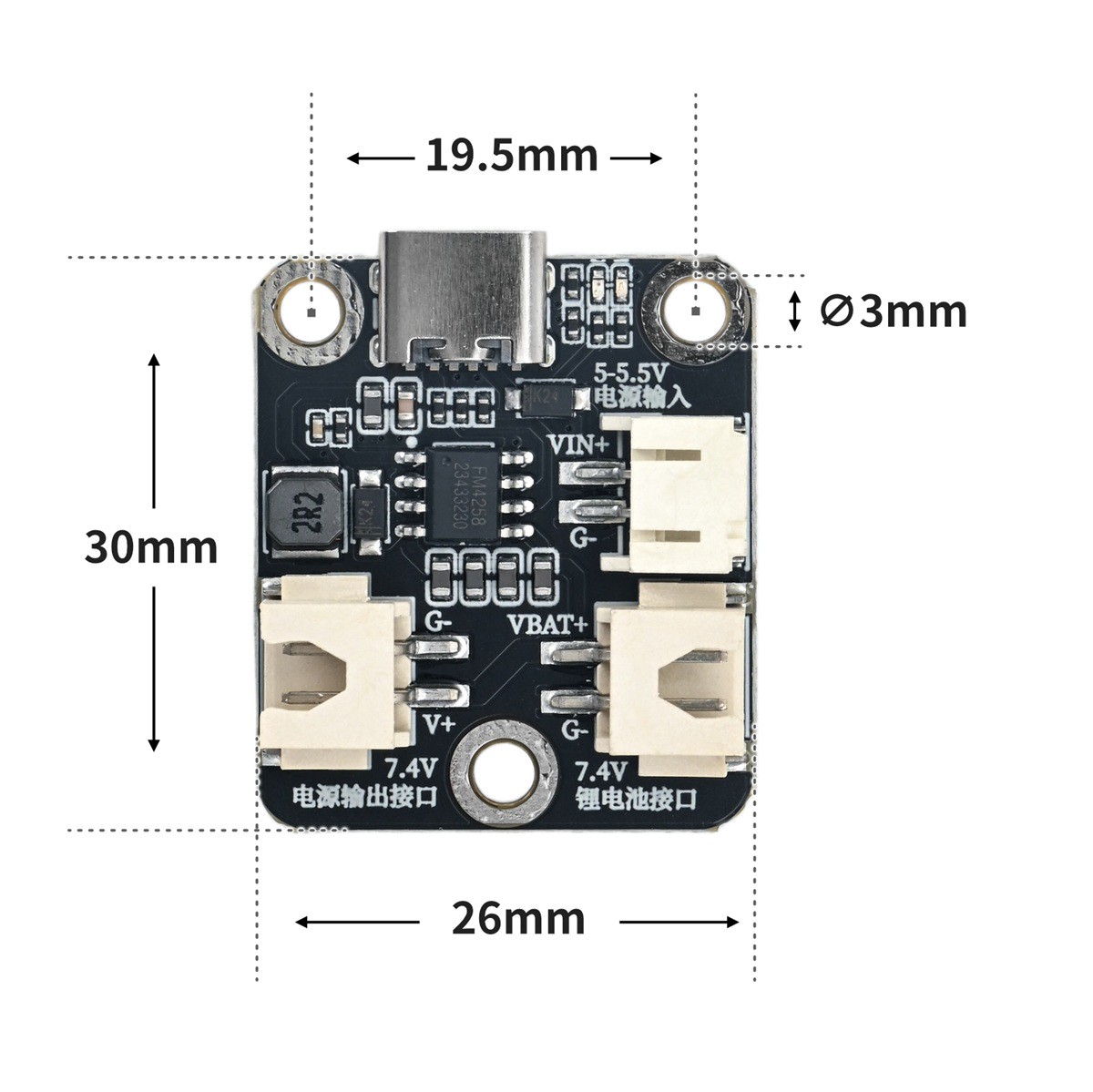

4, Circuit Board Size
5、Technical Parameters
Name: 7.4V lithium battery charging module
Model: HS-P08
Interface Type: Type-C Interface, PH2.0 Terminal
Module Size: 30mm*26mm
Hole Diameter: 3mm
Hole Spacing: 19.5mm
Installation Method: Screw/Building Block Fastening
Operating Temperature: -20℃~60℃
Power Supply Indicator: Indicator Light is On When Connected to 5V Power
Charging: Charging Indicator Light Illuminates
Charging Complete: Charging Indicator Light Turns Off
6, Environment Setup

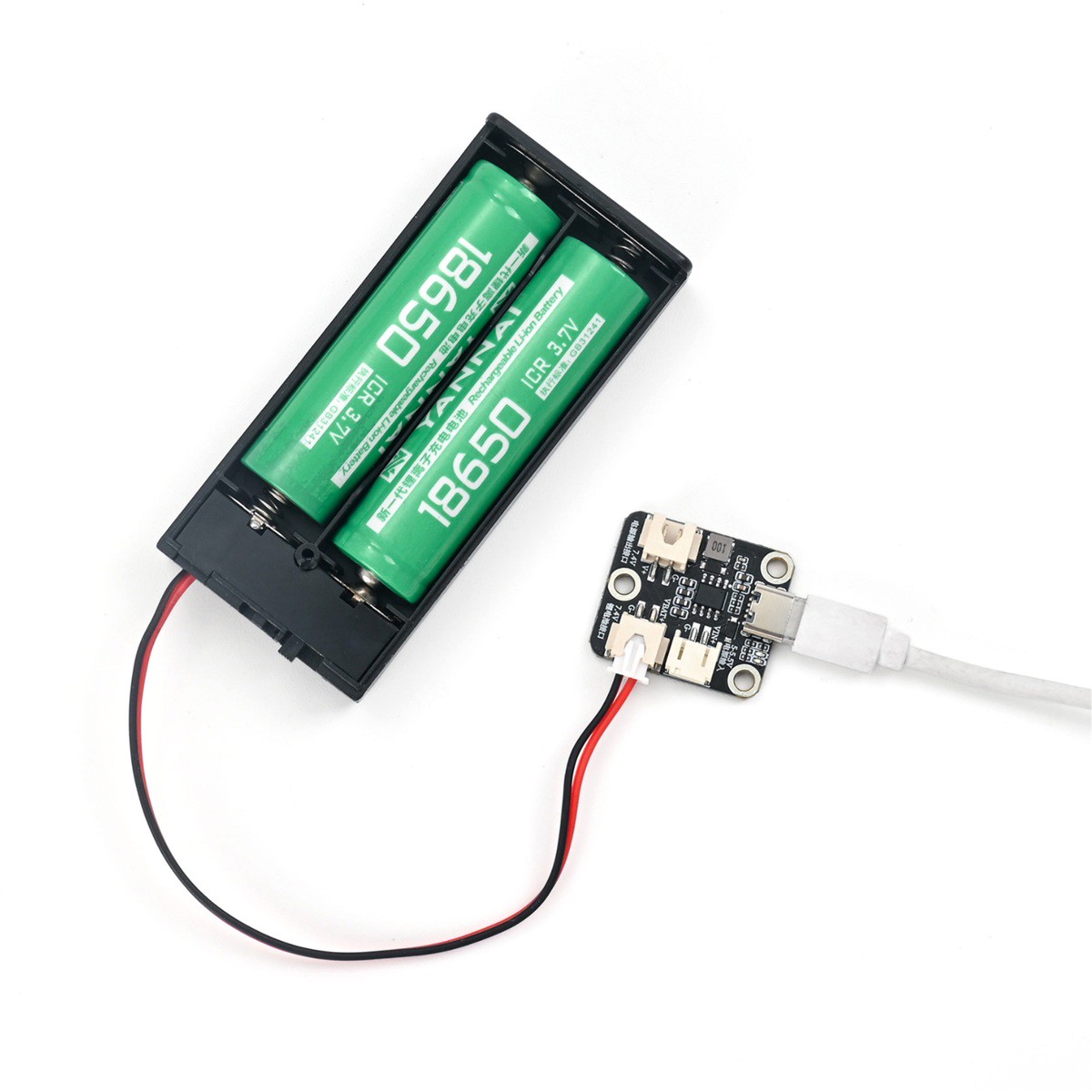

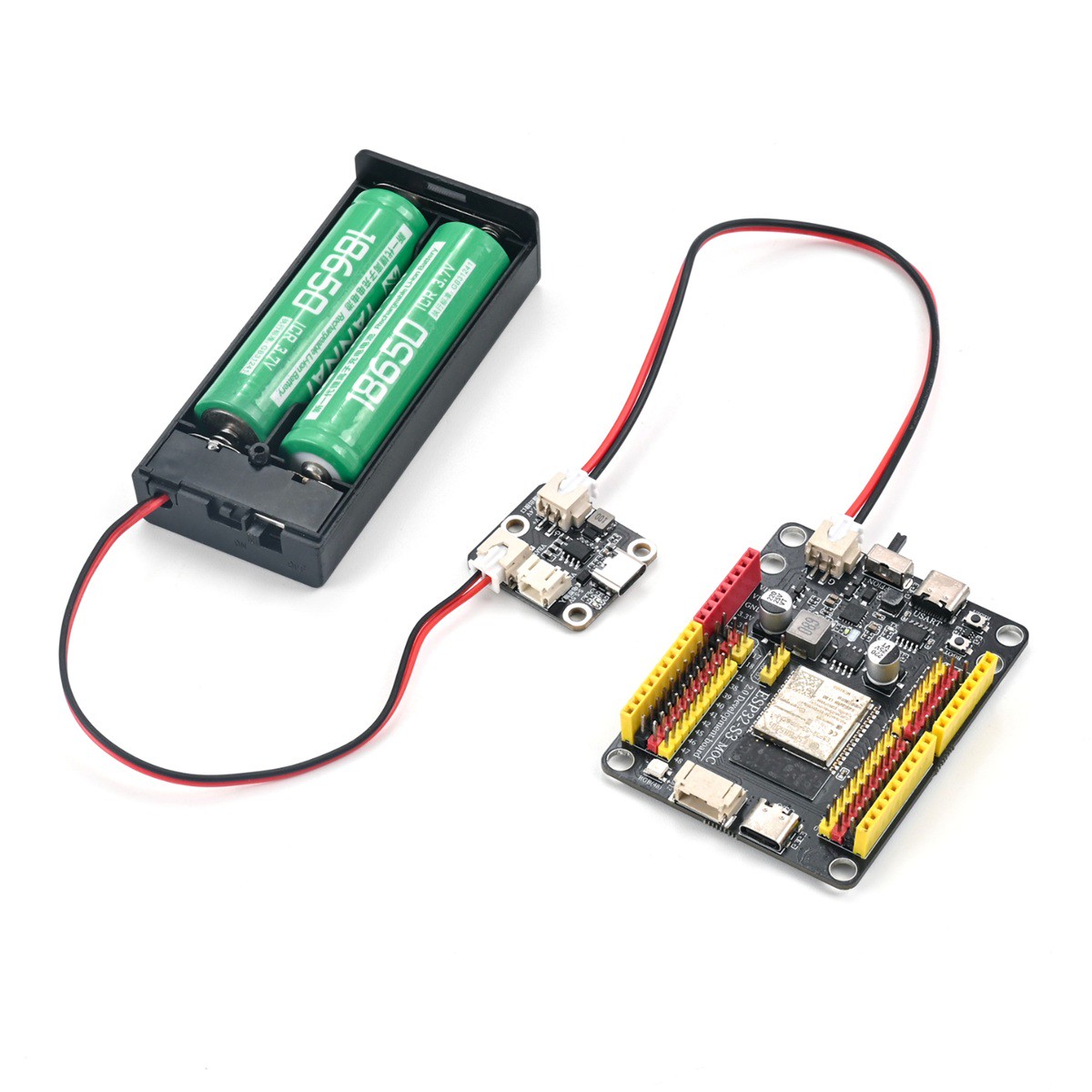

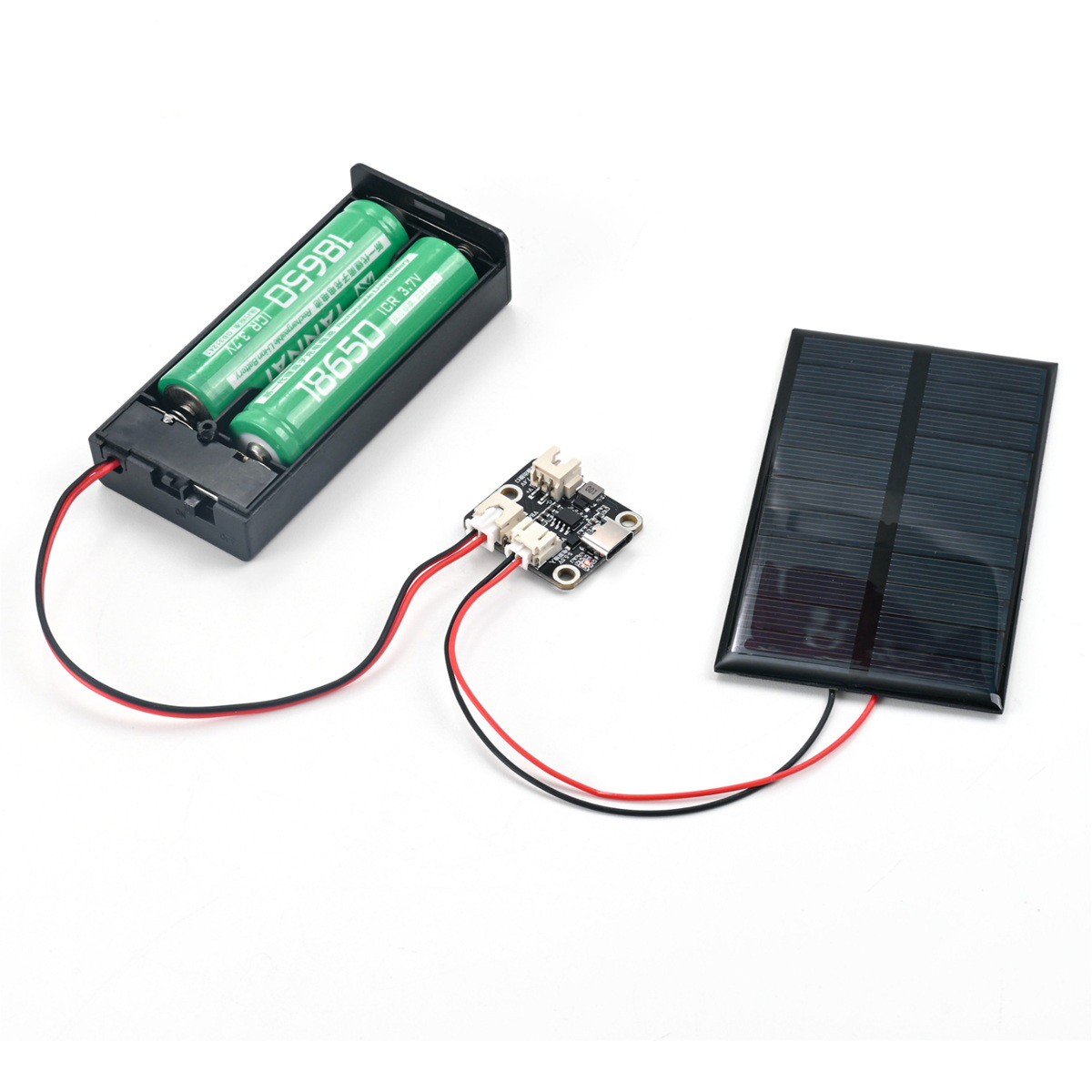

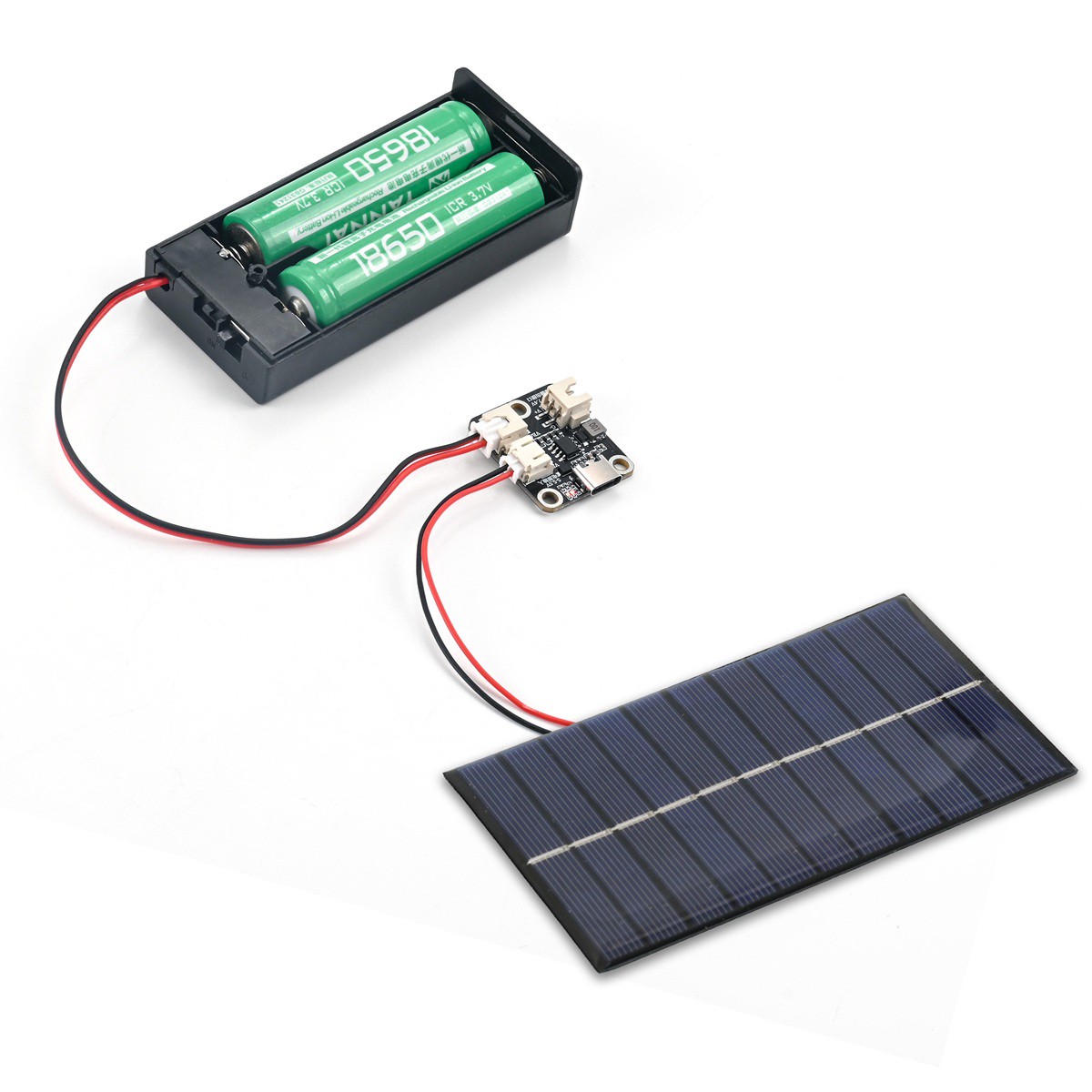

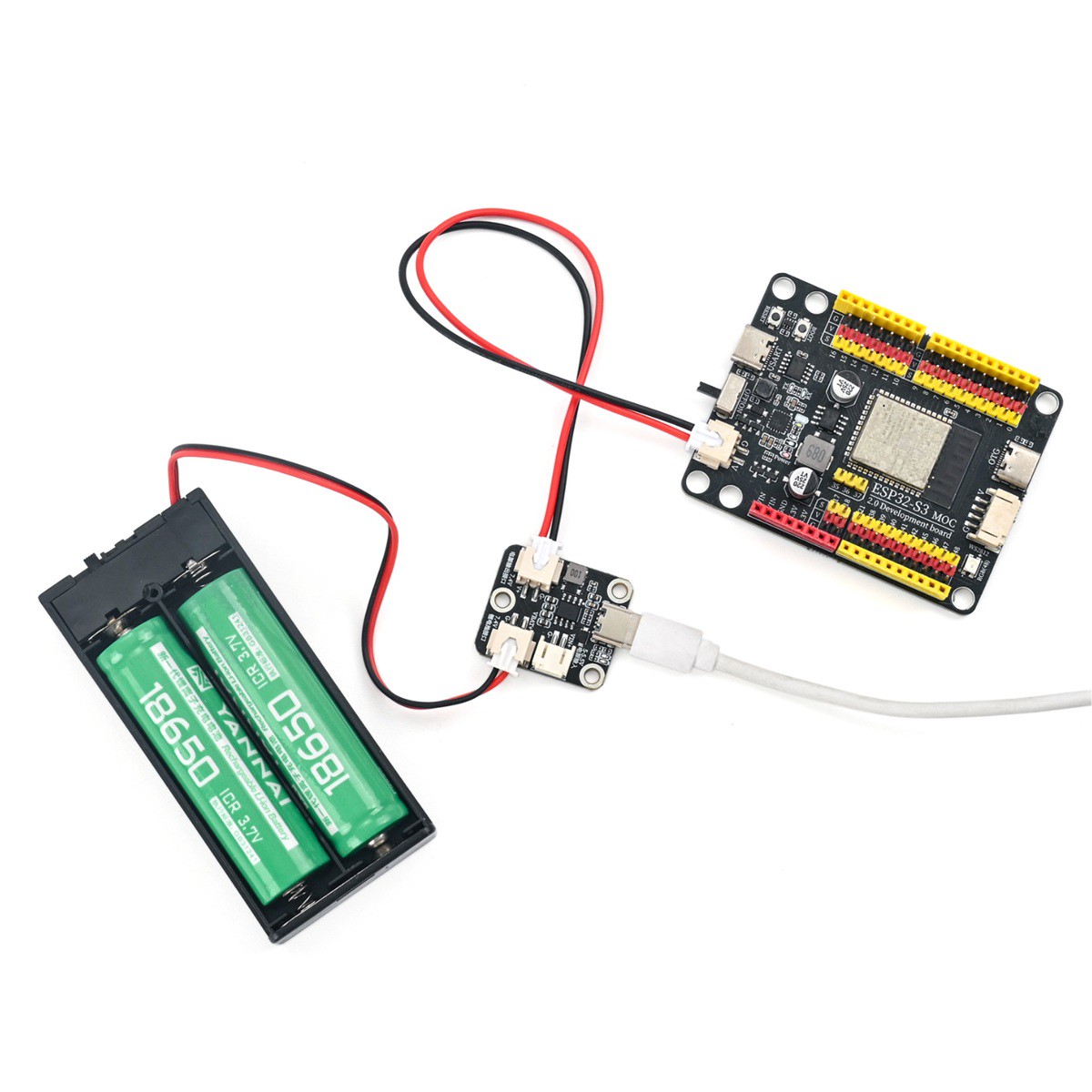

Environment Setup
