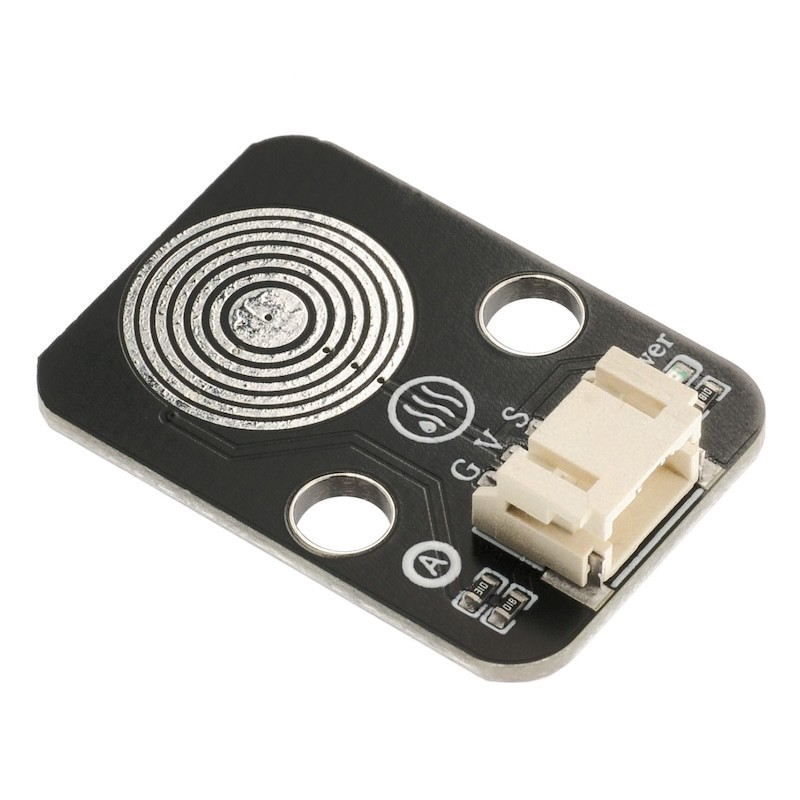

HS-S36-L Steam Sensor

1. Introduction

2. Schematic

Steam Sensor-HS-S36-L SchematicClick to view

Module Parameters

• Supply Voltage: 3V3/5V

• Connection method: PH2.0 3P terminal

• Installation method: double screw fixing/Lego assembly

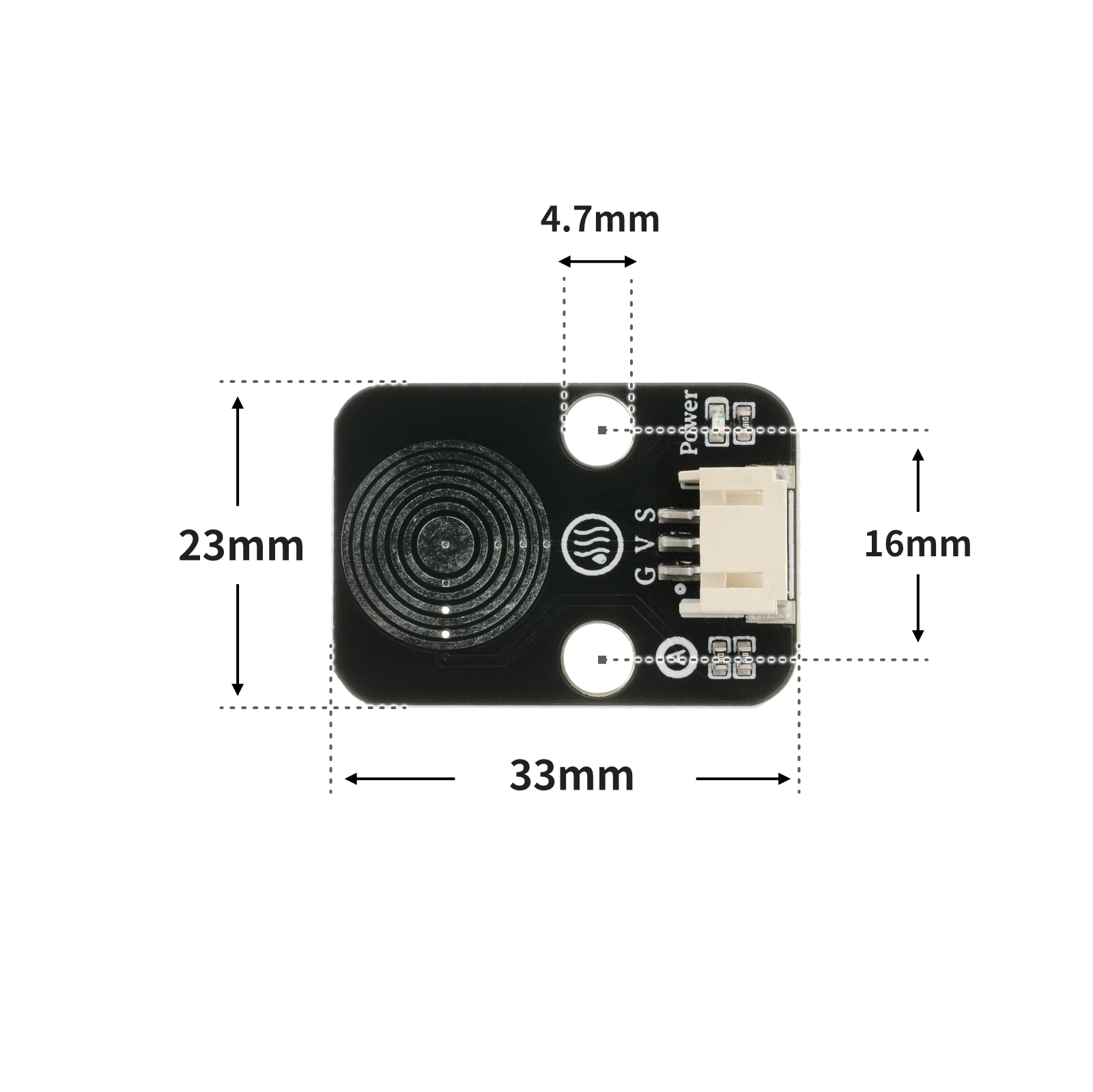

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

 int led= 6;;
 int Water_Vapor_value = 0;

void setup(){
  Serial.begin(9600);

  pinMode(A0, INPUT);
}

void loop(){
  //led灯模块uno开发板接D6引脚；水蒸气传感器接uno开发板A0引脚

  Water_Vapor_value = analogRead(A0);
  if (Water_Vapor_value > 100) {
    pinMode(led, OUTPUT);
    digitalWrite(led,HIGH);
    delay(500);

  } else {
    pinMode(led, OUTPUT);
    digitalWrite(led,LOW);

  }
  Serial.println(Water_Vapor_value);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine

adc32 = machine.ADC(machine.Pin(32))
pin4 = machine.Pin(4, machine.Pin.OUT)
while True:
value = adc32.read_u16()
print(value)
if value > 40000:
pin4.value(1)
else:
pin4.value(0)

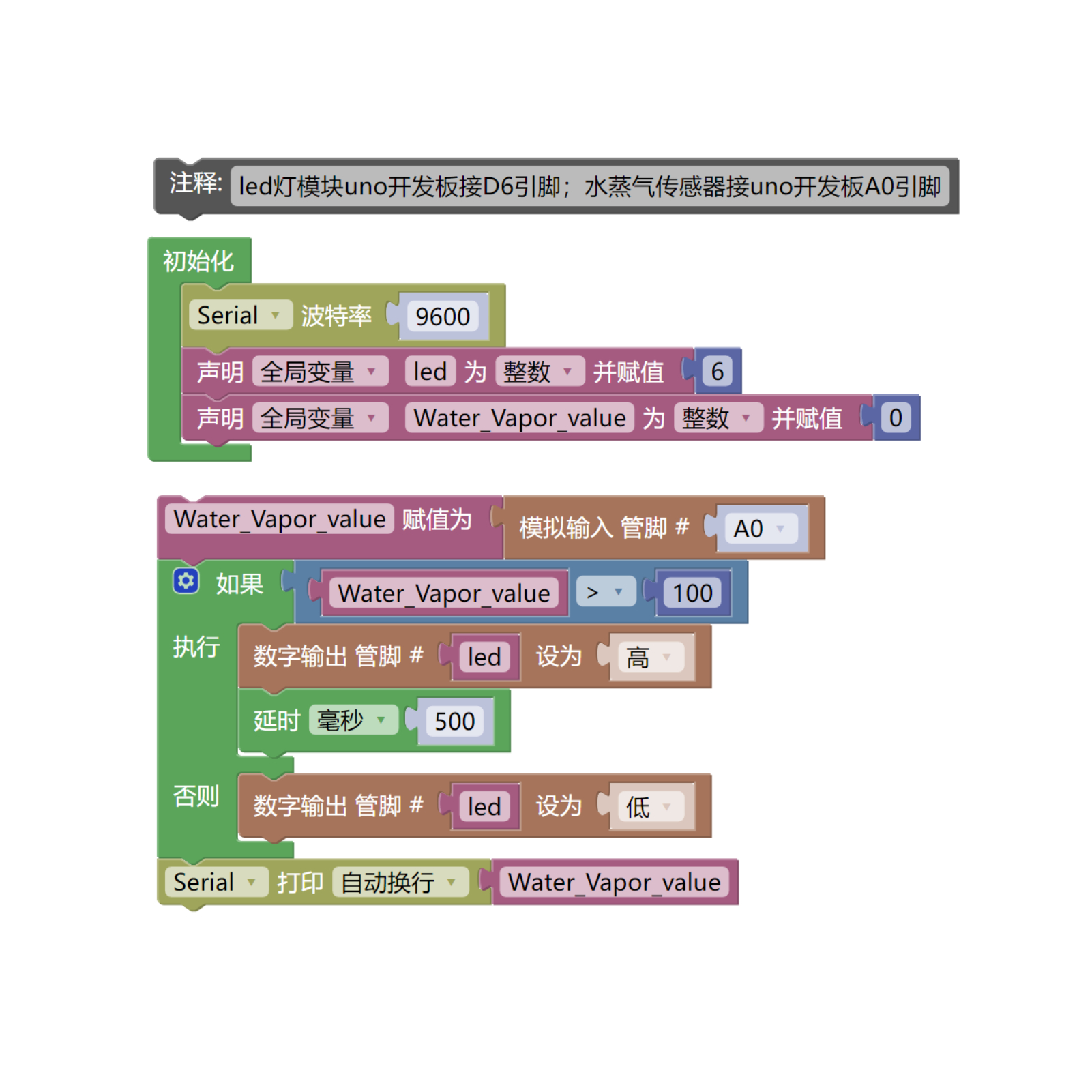

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

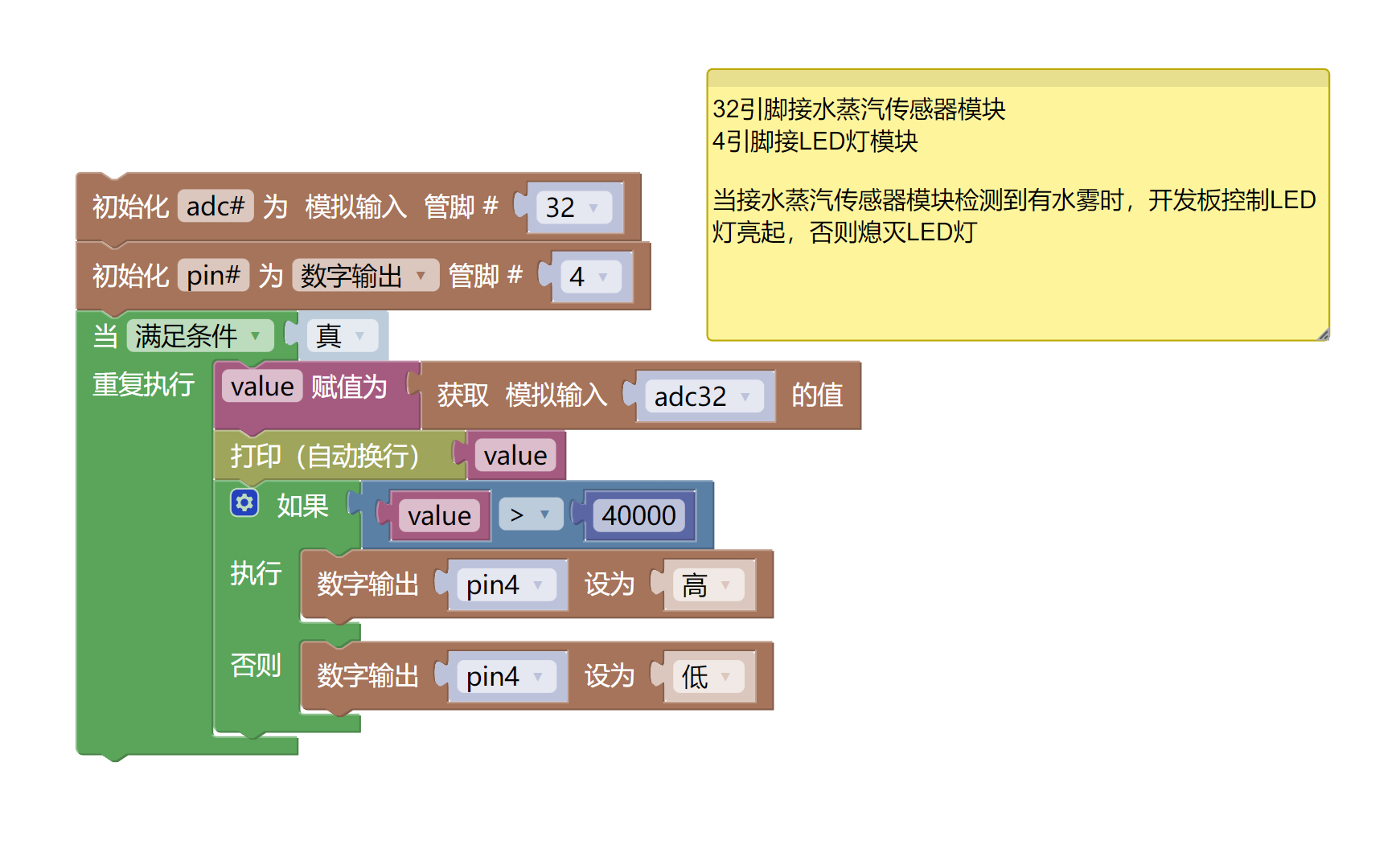

Example Program (ESP32 Development Board):Click to download

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• Steam Sensor Module (HS-S36L) *1

• LED module (HS-F08L) *1

• PH2.0 3P dual-head terminal line *2

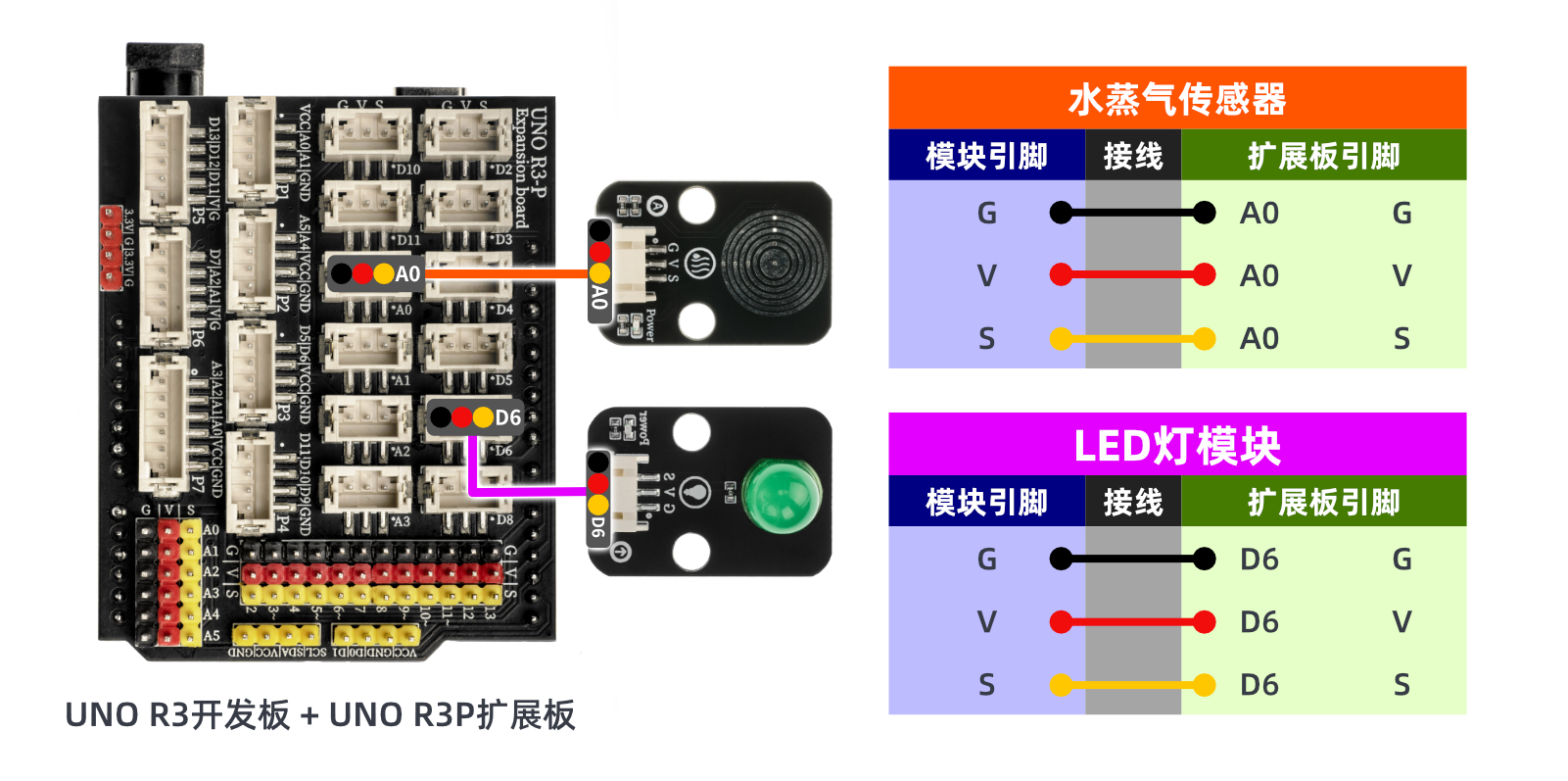

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Arduino UNO video tutorial:Click to view

ESP32 Python Video Tutorial:Click to view

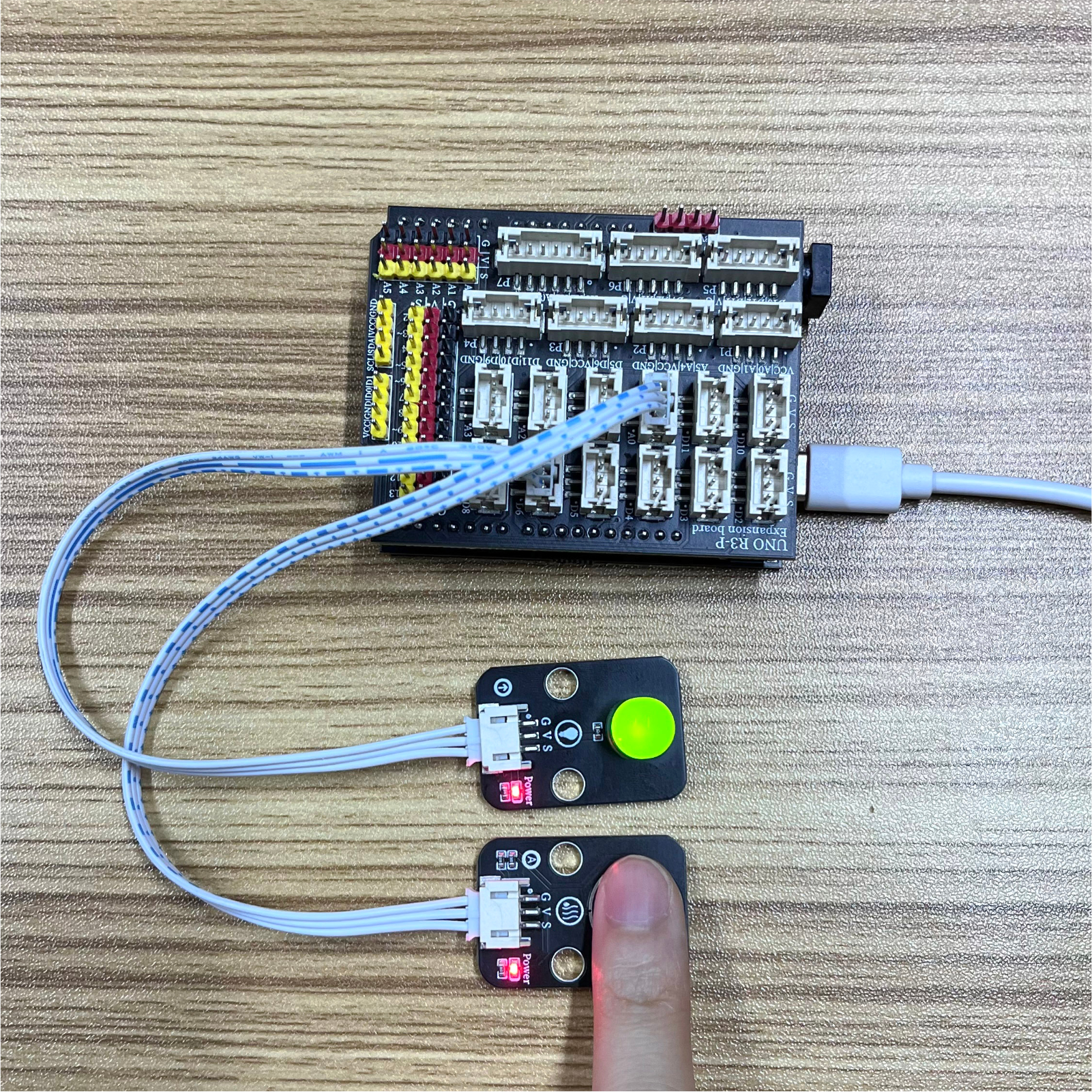

10, Test results

Arduino UNO Test Conclusion:

ESP32 Python test conclusion:
