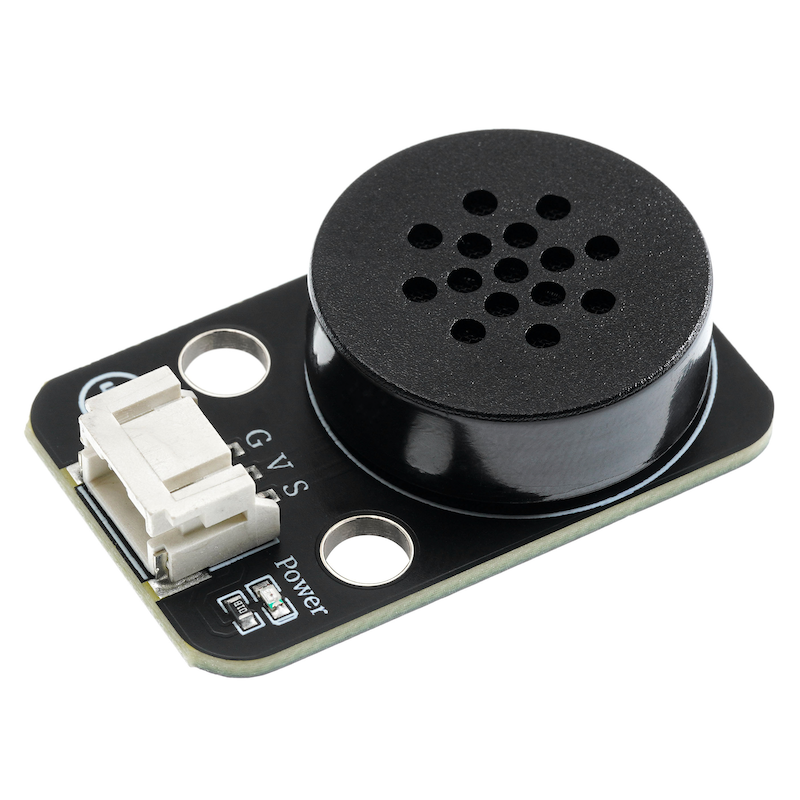

HS-F26-L Voice Broadcast Module

1. Introduction

Voice Announcement Module Usage Instructions:Click to download

2. Schematic

Audio broadcasting module-HS-F26-L schematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection type: PH2.0 3P terminal wire

• Installation Method: Double Screw Fixed

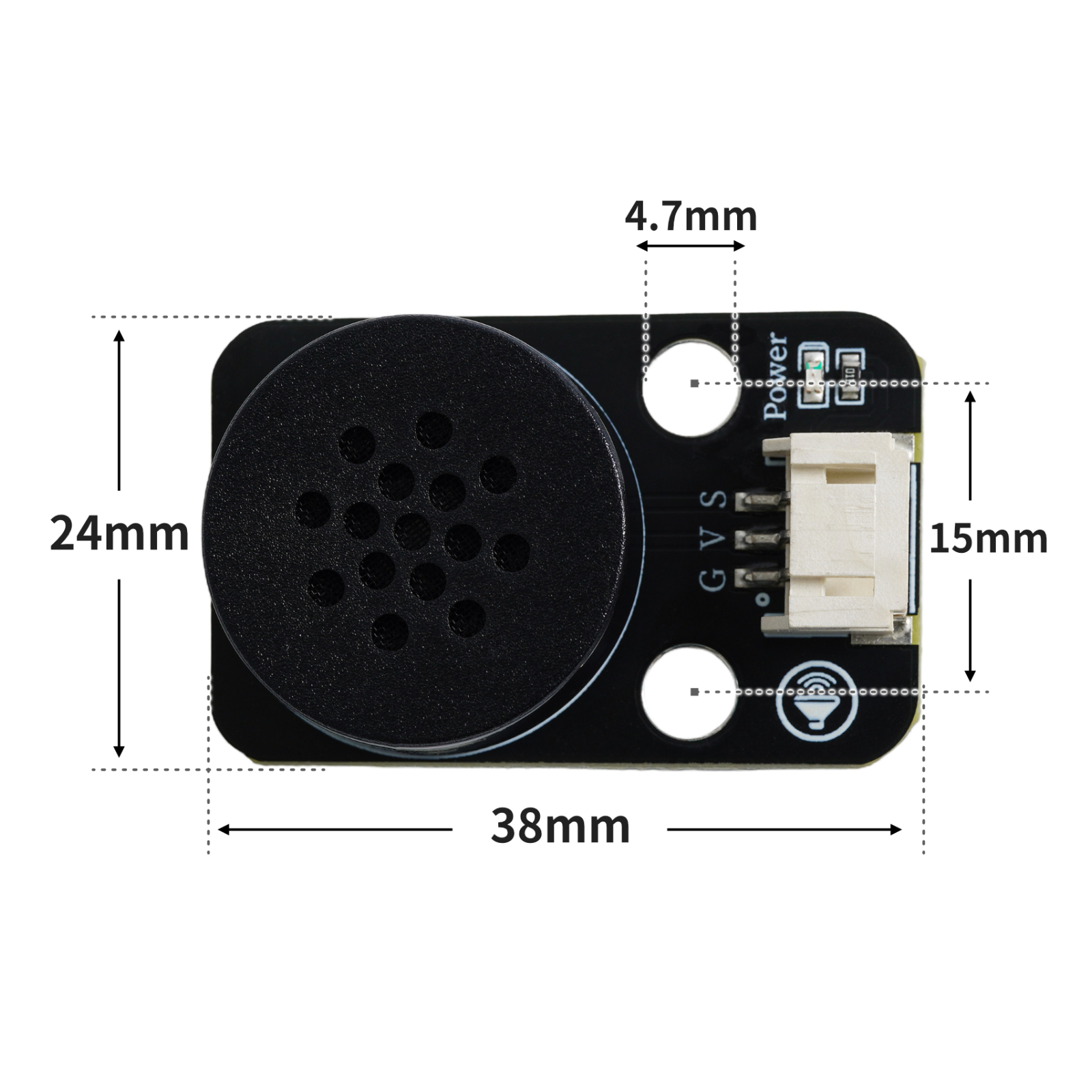

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

void send_data(int addr) {
  int i;
  digitalWrite(8, LOW);
  delay(3); //>2ms
  for (i = 0; i < 8; i++) {
    digitalWrite(8, HIGH);
    if (addr & 1) {
      delayMicroseconds(2400); //>2400us
      digitalWrite(8, LOW);
      delayMicroseconds(800);
    } //>800us
    else {
      delayMicroseconds(800); //>800us
      digitalWrite(8, LOW);
      delayMicroseconds(2400);
    } //>2400us
    addr >>= 1;
  }
  digitalWrite(8, HIGH);
}

void setup(){
  pinMode(8, OUTPUT);
}

void loop(){
  send_data(0x10); //volume control 0xE0-E7;
  delay(1000);
  send_data(0x11); //volume control 0xE0-E7;
  delay(1000);
  send_data(0x12); //volume control 0xE0-E7;
  delay(1000);
  send_data(0x13); //volume control 0xE0-E7;
  delay(1000);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import time
def voice_broadcast(Pin, directives, delay):
    Pin.value(0)
    time.sleep_ms(5)
    for i in range(0, 8, 1):
        if ((directives>>i)&0x01) == 0:
            Pin.value(1)
            time.sleep_us(800)
            Pin.value(0)
            time.sleep_us(2400)
        elif ((directives>>i)&0x01) == 1:
            Pin.value(1)
            time.sleep_us(2400)
            Pin.value(0)
            time.sleep_us(800)
    Pin.value(1)
    time.sleep_ms(delay)

Pin4 = machine.Pin(4, machine.Pin.OUT)
Pin4.value(1)
time.sleep_ms(10)


voice_broadcast(Pin4, 0x10,1000)
voice_broadcast(Pin4, 0x11,1000)
voice_broadcast(Pin4, 0x12,1000)
voice_broadcast(Pin4, 0x13,1000)

7, Mixly example program (graphical language)

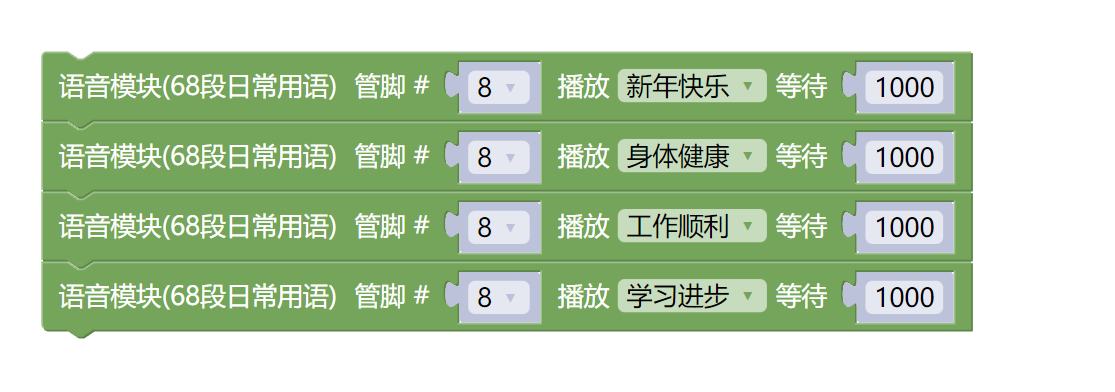

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

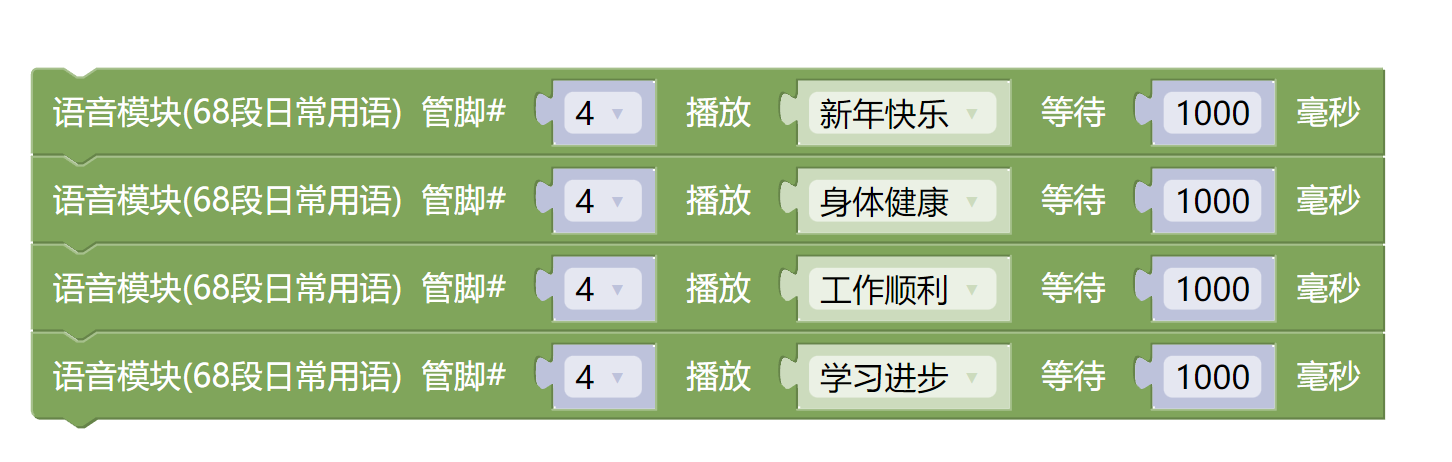

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• UNO-R3 Development Board *1

• UNO-R3 P Expansion Board *1

• USB TYPE-C DATA CABLE *1

• Announcement Module (HS-F26L) *1

• PH2.0 4P Double Head Terminal Line *1

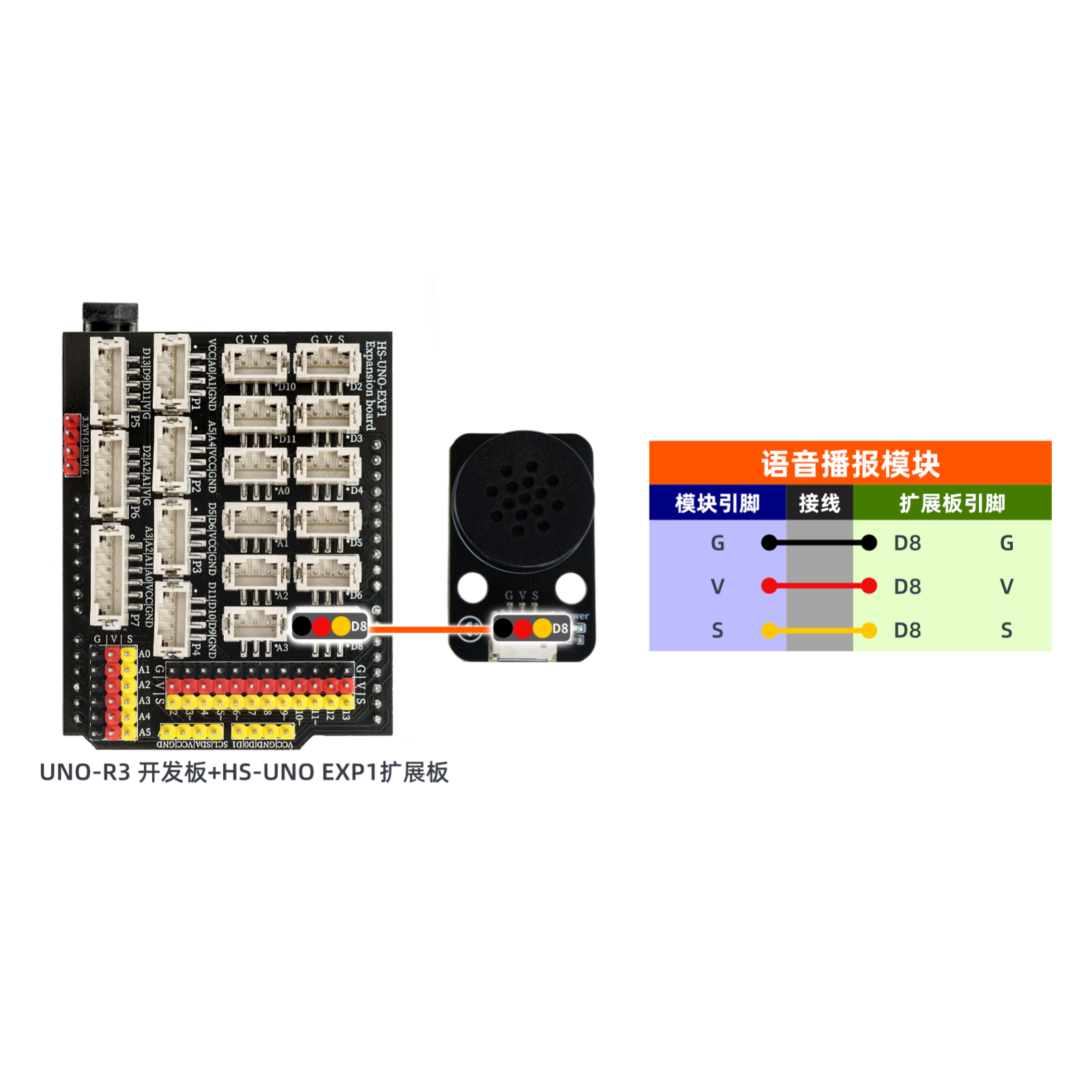

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Arduino UNO video tutorial:Click to view

ESP32 Python Video Tutorial:Click to view

10, Test results

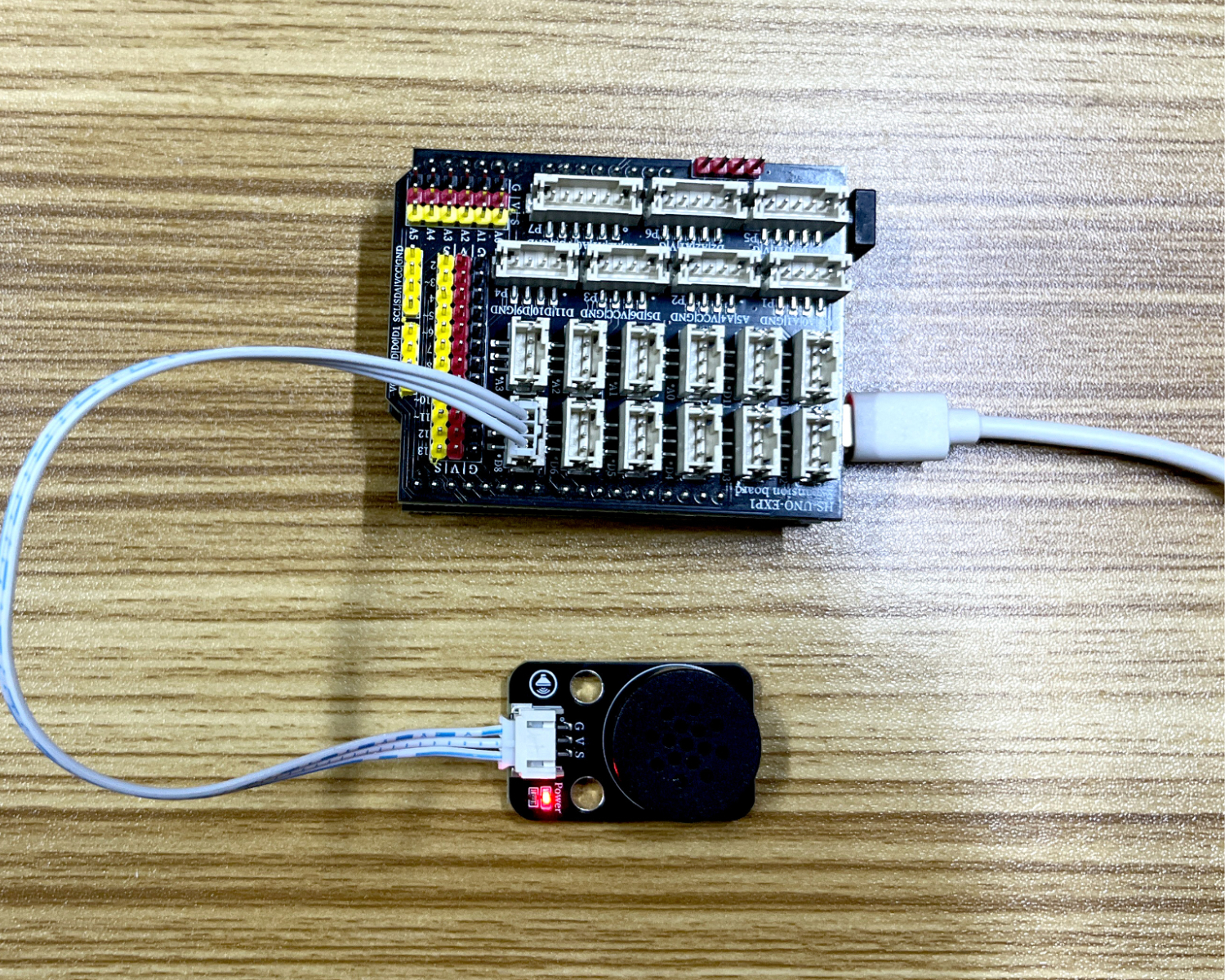

Arduino UNO test results:

After connecting the device and uploading the program to the Arduino UNO development board, you will find that the voice broadcast module plays the statements set by the program in a loop.

ESP32 Python test results:

Pending update...
