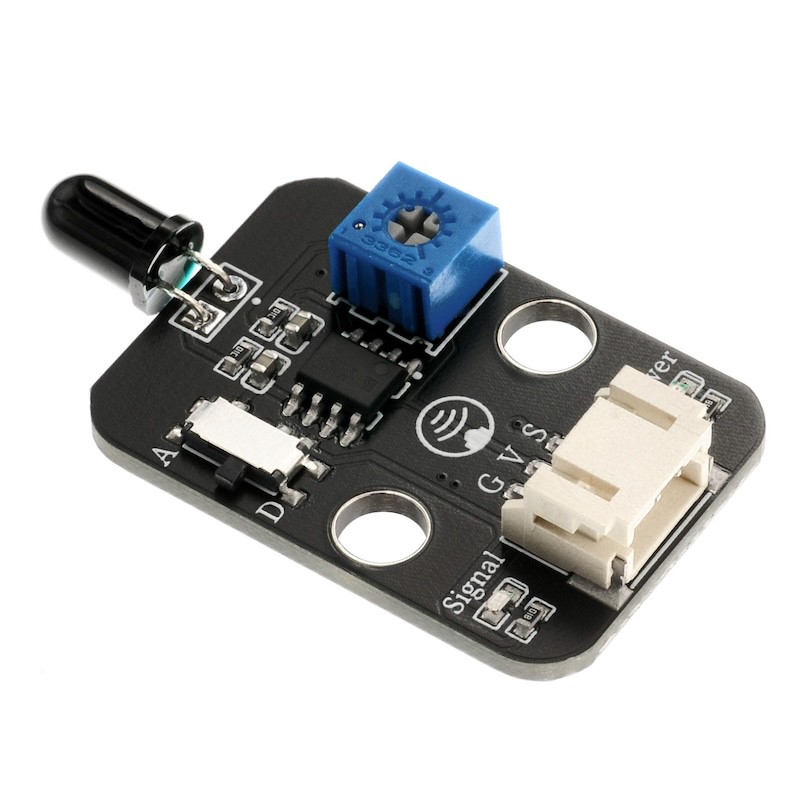

Infrared Signal Receiver Module (Flame Sensor) HS-S08-L

1. Introduction

2. Schematic

Infrared Signal Receiver Module-HS-S08-L SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection type: PH2.0 3P terminal wire

• Installation Method: Double Screw Fixed

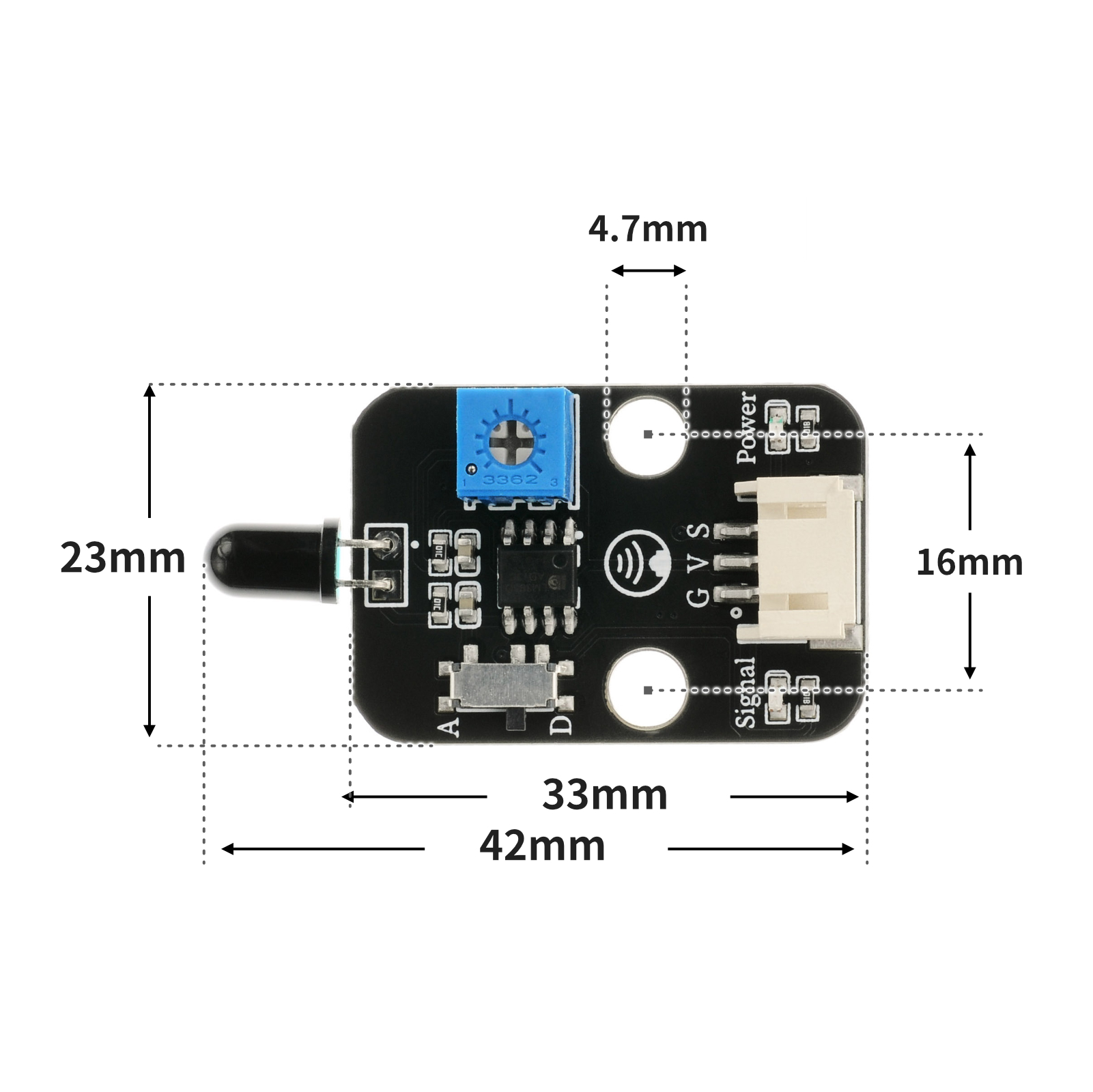

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

volatile int value;
void setup(){
 Serial.begin(9600);
 value = 0;
 pinMode(4, INPUT);
 pinMode(6, OUTPUT);
}
void loop(){
 value = digitalRead(4);
 Serial.print("火焰值：");
 Serial.println(value);
 delay(1000);
 if (value == 0) {
 tone(6,196);
 delay(2000);
 } else {
 noTone(6);
 }
}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import music


pin2 = machine.Pin(2, machine.Pin.IN)
midi = music.MIDI(4)
while True:
if pin2.value() == 0:
midi.pitch_time(440, 2000)

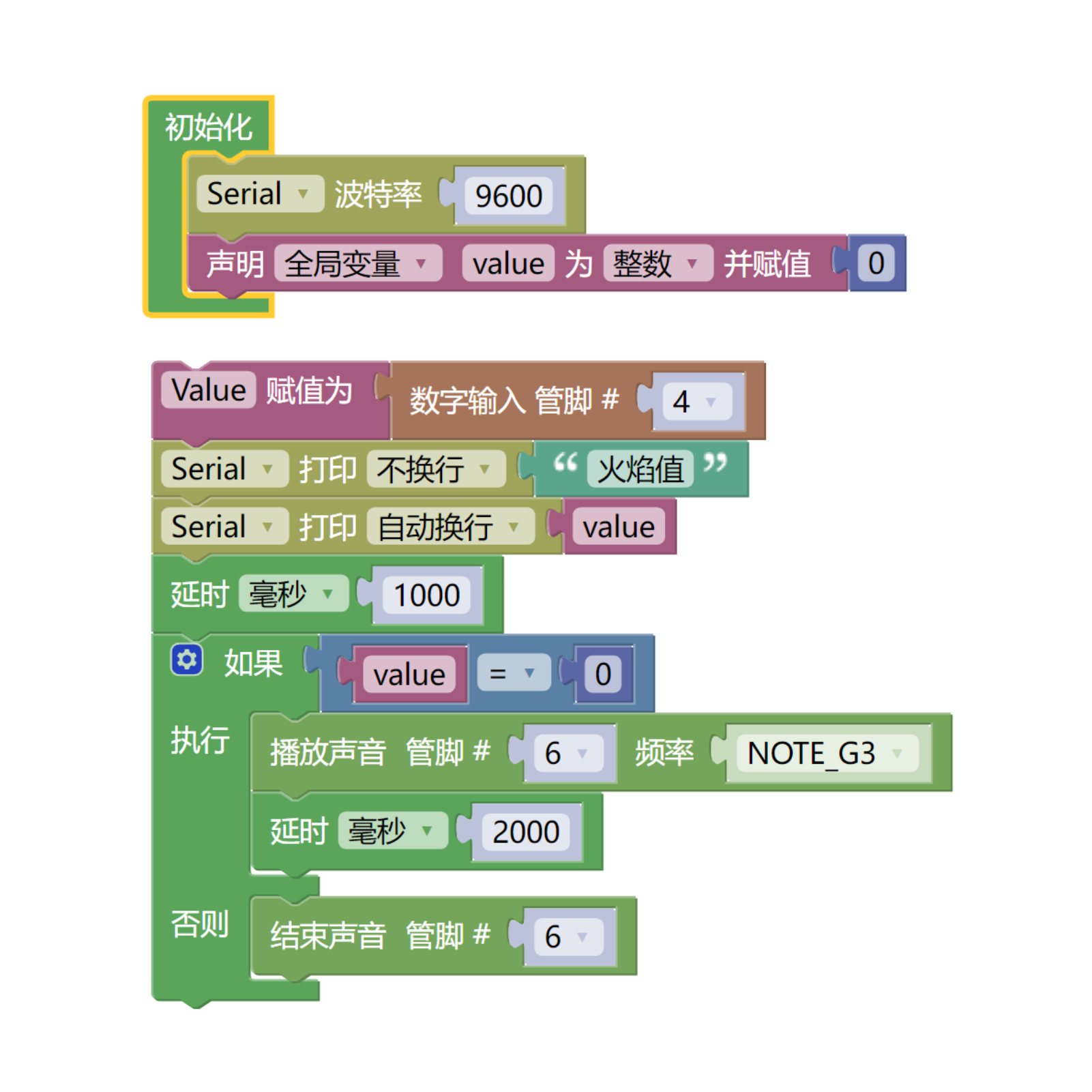

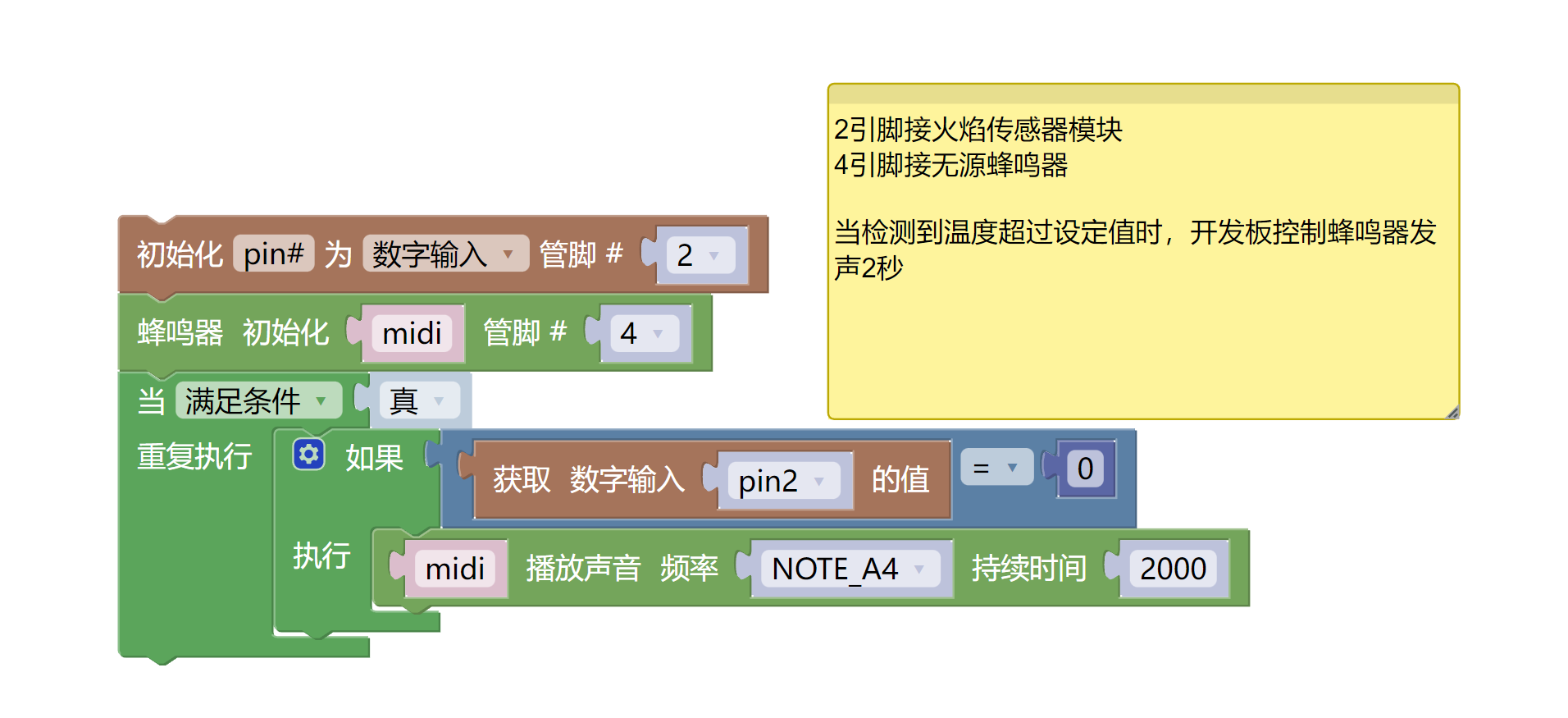

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• Passive buzzer module (HS-F02A) *1

• Flame Sensor Module (HS-S08P) *1

• PH2.0 3P Dupont wire *1

• 1P female to female DuPont wire *3 pieces or 3P female to female DuPont wire *1 piece

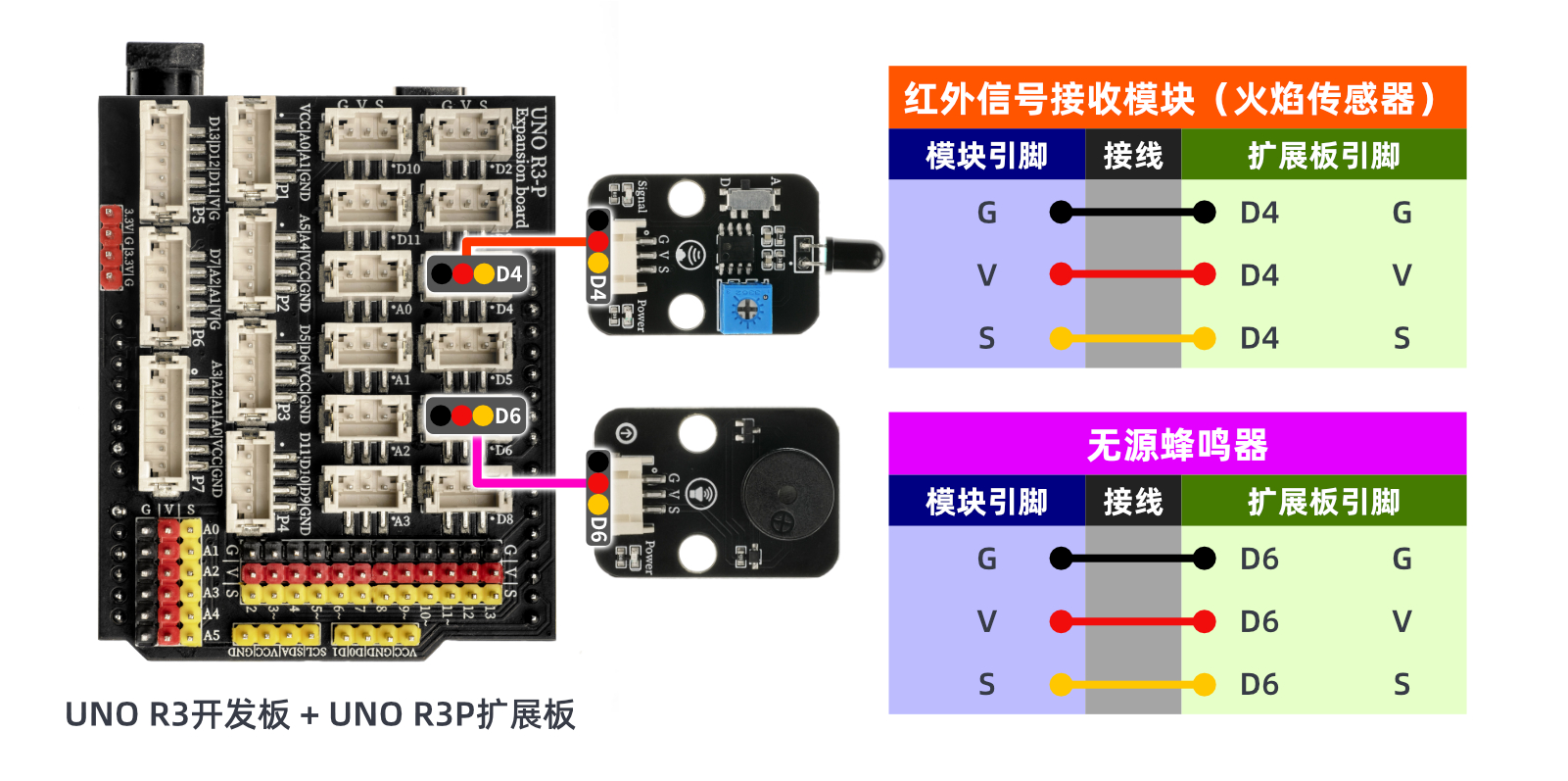

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Arduino UNO video tutorial:Click to view

ESP32 Python Video Tutorial:Pending update...

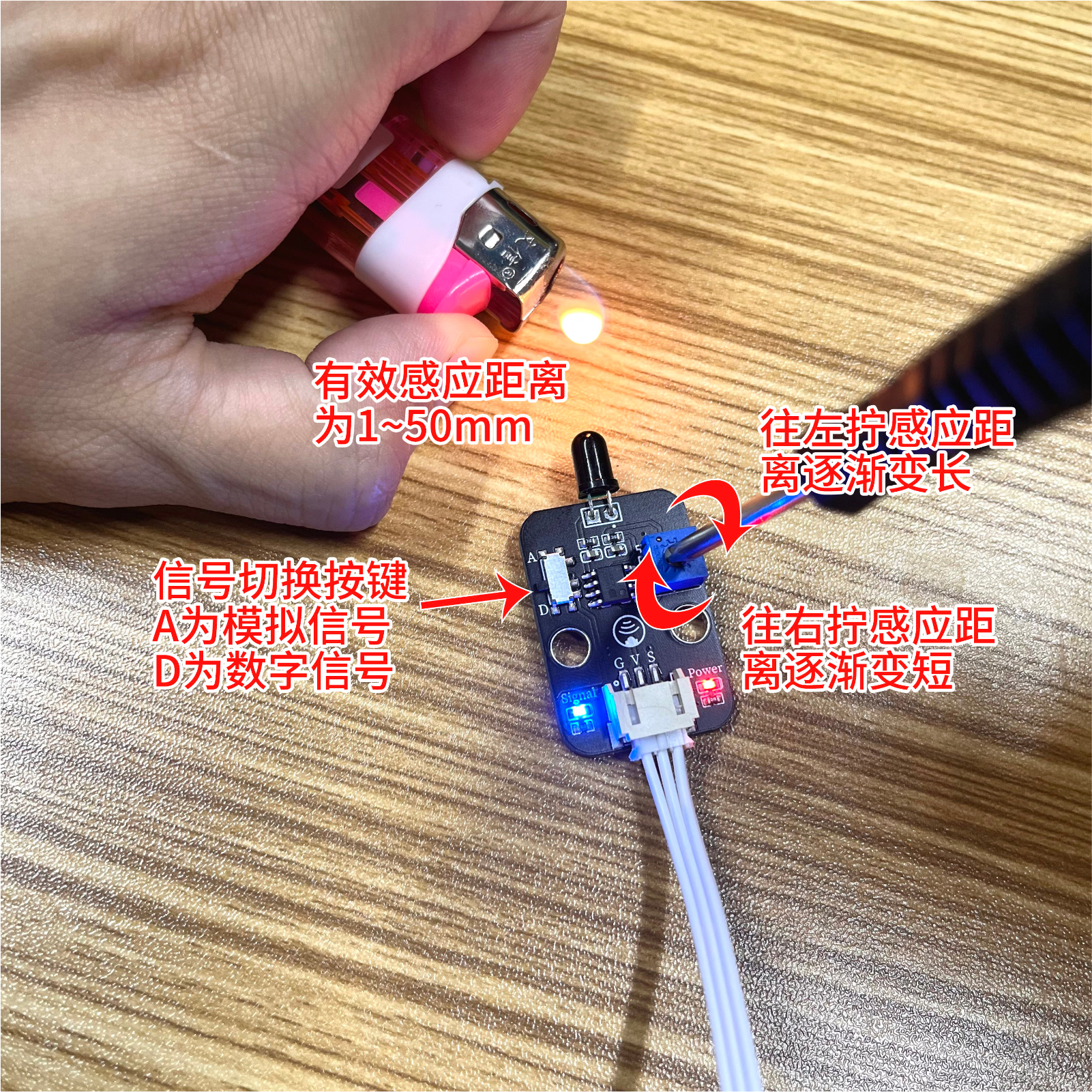

10, Test results

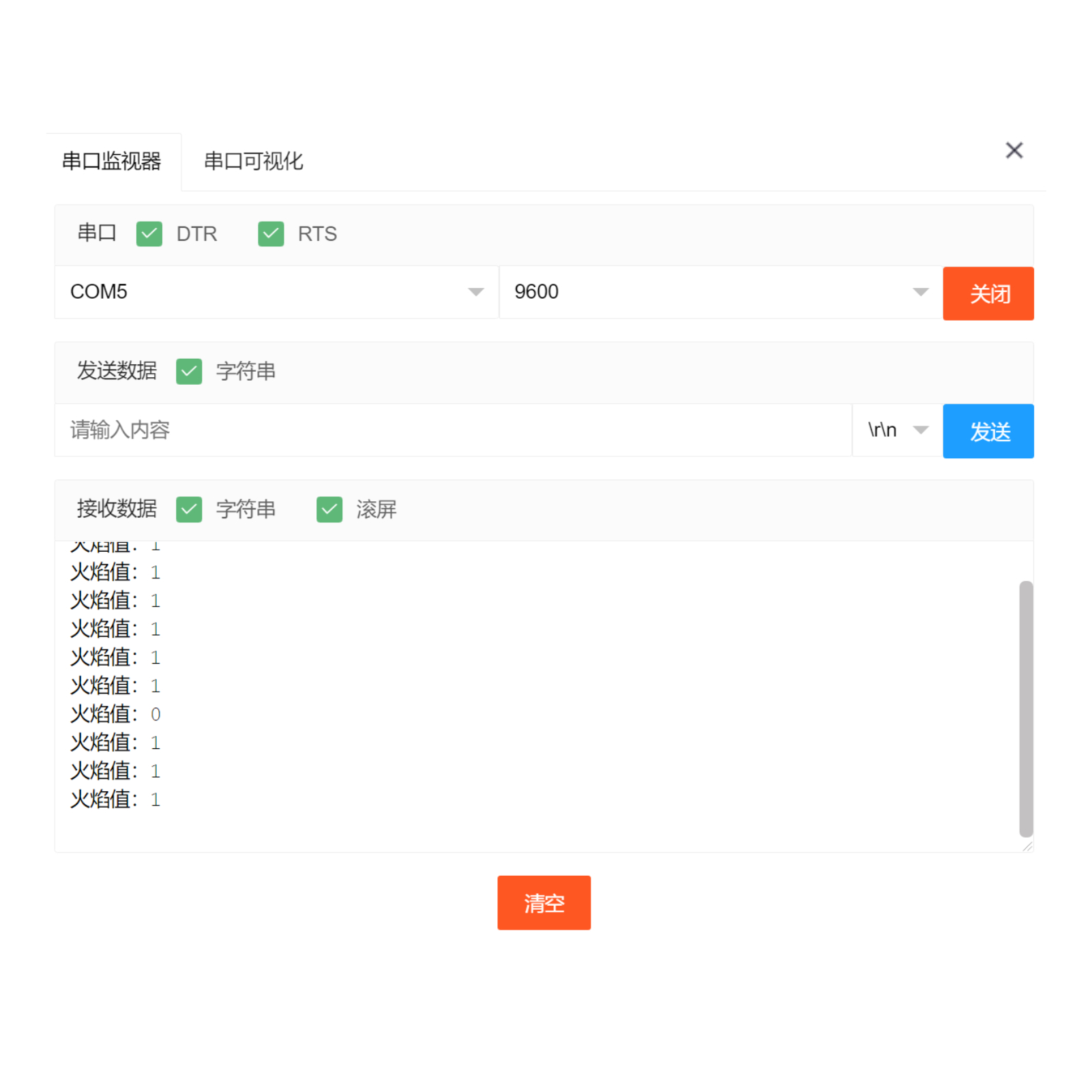

Arduino UNO test results:

ESP32 Python test conclusion:
