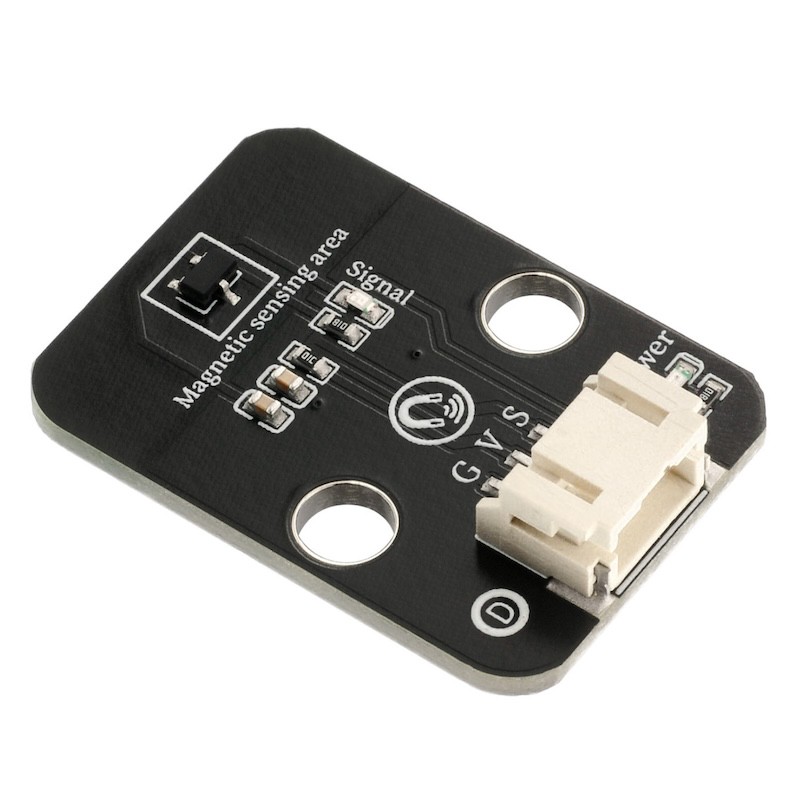

HS-S40-L霍尔磁性传感器

1. Introduction

Hall magnetic sensors are a type of magnetic field sensor made based on the Hall effect.The full-potential Hall effect is a type of magneto-electric effect.When the magnet approaches its sprinting surface, the switch outputs a low level; when the magnet is removed, the switch outputs a high level.

2. Schematic

All-pole Hall magnetic switch-HS-S40-L schematic diagramClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 3P terminal

• Installation Method: Double Screw Fixed

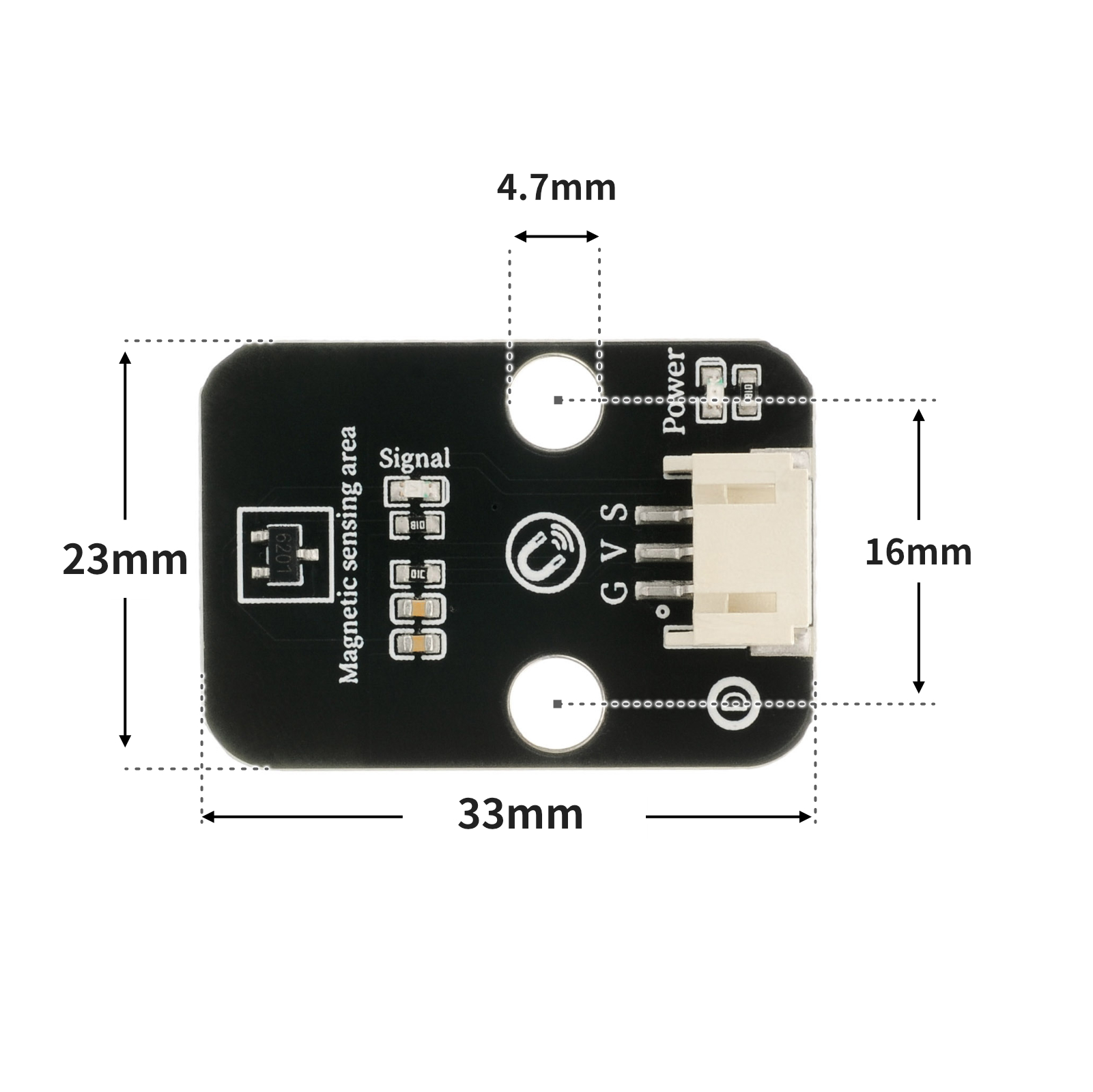

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

volatile int value;

void setup(){
  Serial.begin(9600);
  value = 0;
  pinMode(5, INPUT);
  pinMode(6, OUTPUT);
}

void loop(){
  value = digitalRead(5);
  Serial.print("串口值：");
  Serial.println(value);
  delay(1000);
  if (digitalRead(5) == 0) {
    digitalWrite(6,HIGH);

  } else {
    digitalWrite(6,LOW);

  }

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine

pin2 = machine.Pin(2, machine.Pin.IN)
pin4 = machine.Pin(4, machine.Pin.OUT)
value = 0
while True:
value = pin2.value()
print(value)
if pin2.value() == 0:
pin4.value(1)
else:
pin4.value(0)

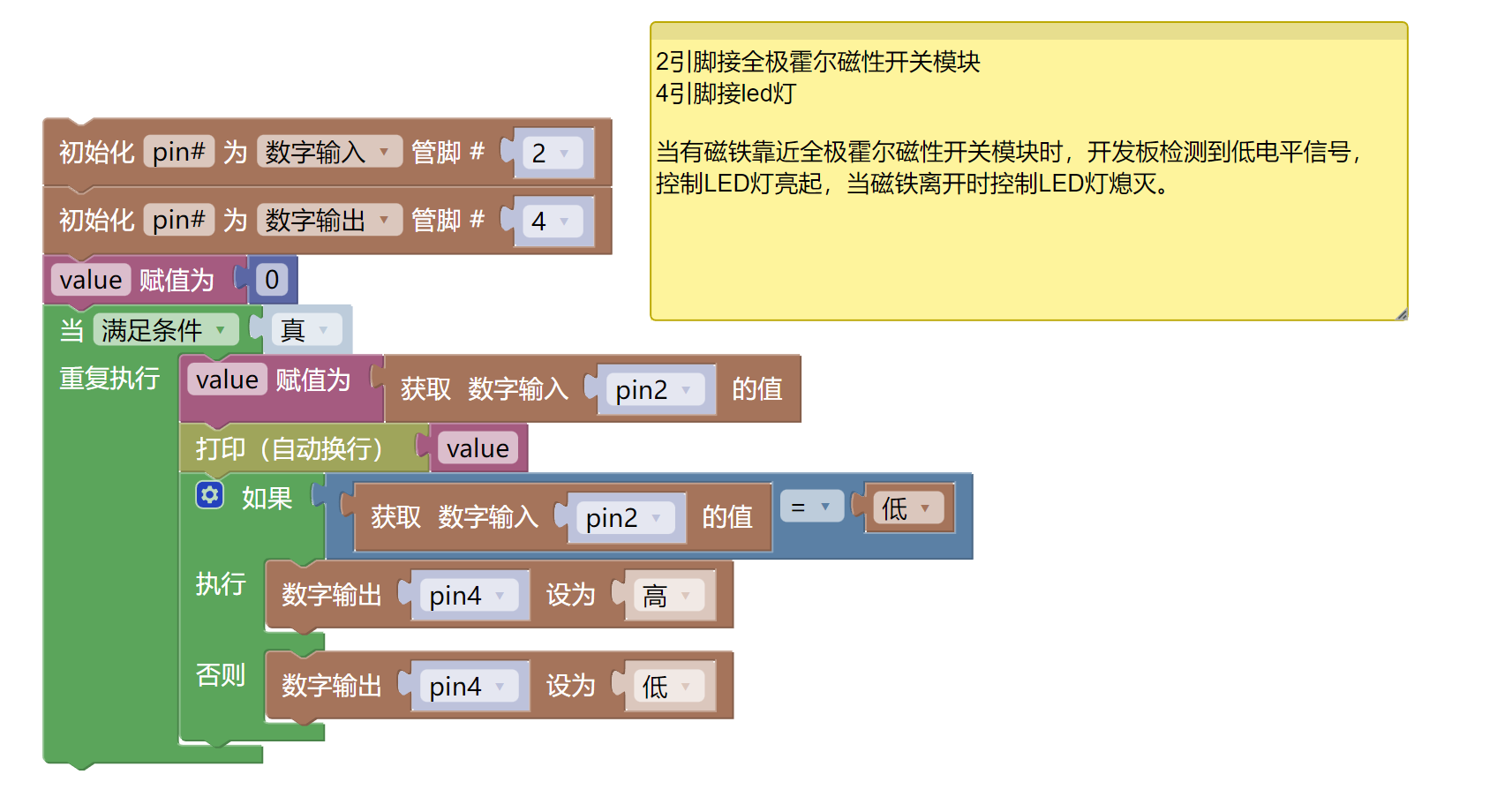

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• LED module (HS-F08L) *1

• Hall Magnetic Sensor (HS-A40L) *1

• PH2.0 3P dual-head terminal line *2

• Magnet (self-provided) *1

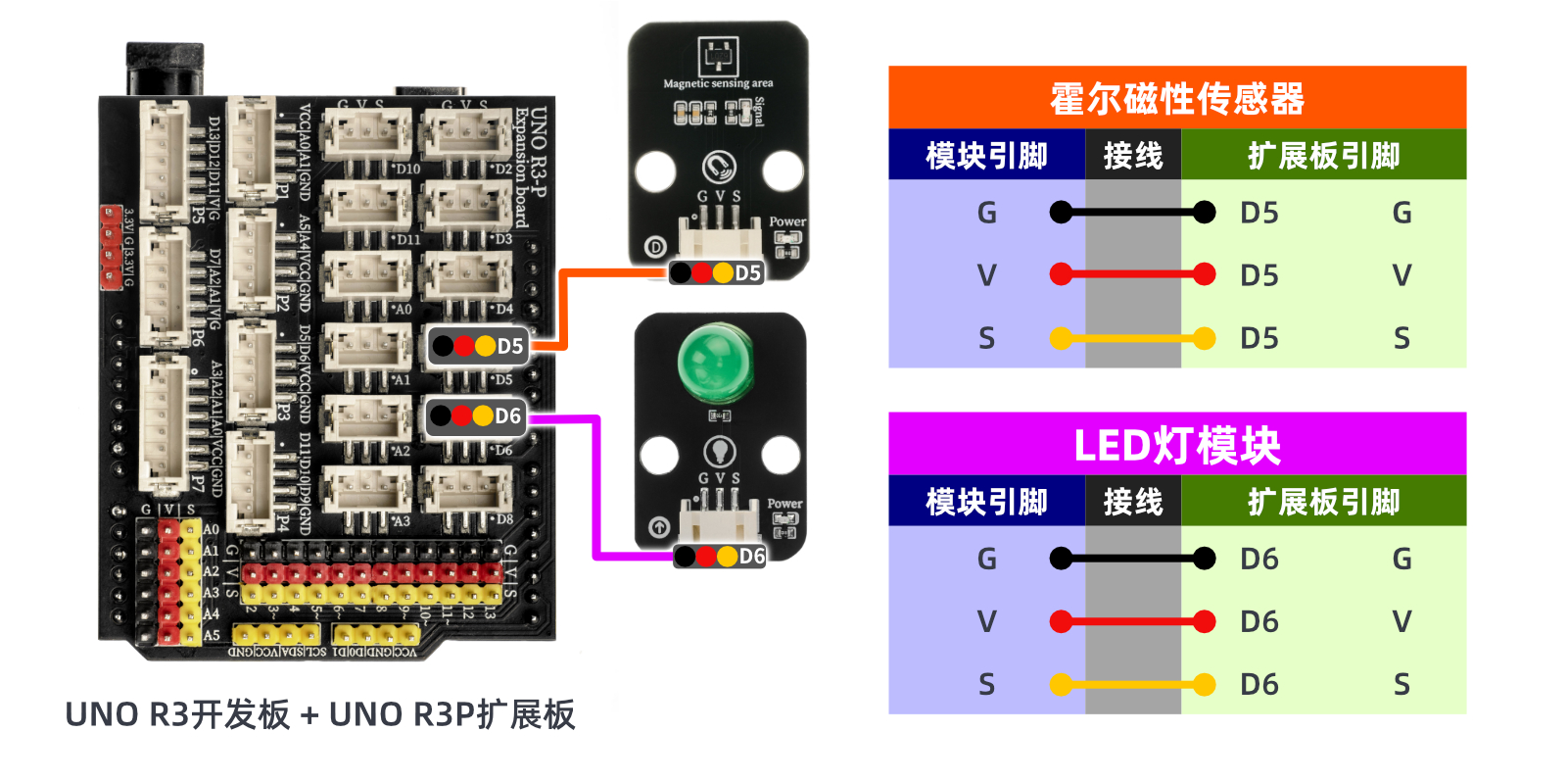

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Arduino UNO video tutorial:Click to view

ESP32 Python Video Tutorial:Pending update...

10, Test results

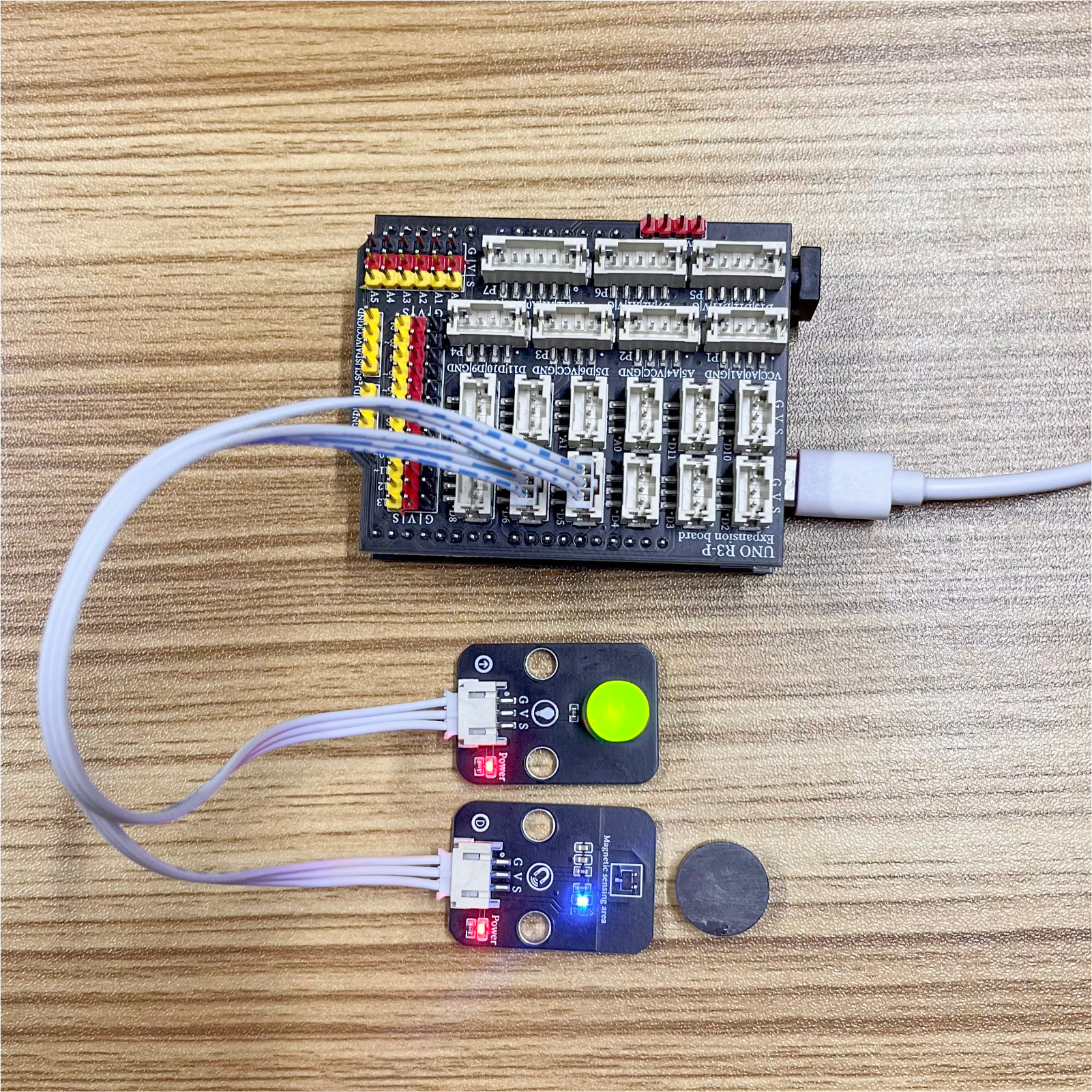

Arduino UNO test results:

ESP32 Python test conclusion:
